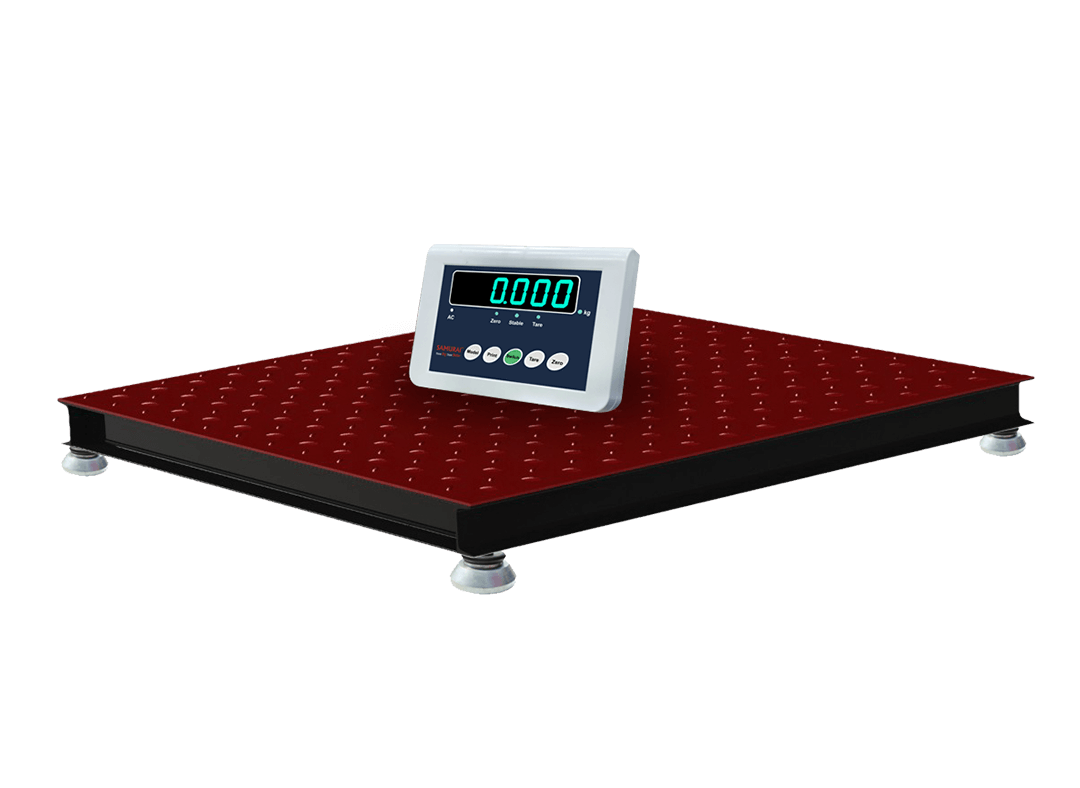

Digital Heavy-Duty Floor Weighing Scale

Part Code : FWS-01
Approx. Value : 34250.00 INR
We are a prominent Digital Heavy-Duty Platform Scale manufacturer, supplier and exporter of electronic weighing scales. The Heavy-Duty Platform weighing Scales, offered by us is mainly required for heavy duty applications in several industries. Our wide assortment of heavy duty platform weighing scale is made by using latest technologies as per the international standards. Besides, we also offer doormat scale for several industrial applications

Features of Digital Heavy-Duty Floor Weighing Scale :

  • Chequered plate surface for added grip
  • Approximately three meters shielded
  • Adjustable levelling feet help optimise setup
  • Sealed keypad protects against dirt and spills
  • Colour-coded keys facilitate quick recognition
  • Available in single loadcell and 4 load cells
  • Rugged construction stands up industrial use
  • Solid mild steel housing is durable for industrial uses
  • Zero-tracking feature ensures display returns to zero reading
  • Bright Green LED display for easy viewing in most environments
  • External calibration allows for verification and adjustments with weights

Technical Function of Display Unit :

  • High precision A/D conversion with readability 1/30000
  • Call and display inner code to replace weight observing and analysis tolerance
  • Special digital filtering technology to strengthen anti-vibration ability
  • Able to set up zero-tracking range, zero(auto/manual) range?
  • Able to set up digital filter intensity range and stable time
  • With counting function (unit weight data save protection in case of power off)
  • Selectable backlight mode
  • AC/DC power supply, with built-in rechargeable 6V/4AH battery
  • Alarm for low battery and auto power off at low battery
  • Optional of RS232 interface with selectable baud rate and communication method
  • Optional of scoreboard interface sending by 20mA current loop
  • Nonstandard Function (Optional, please inform sales staff if need)

General Specification :

  • Weighing units: kg, g
  • Calibration: External calibration
  • Housing: ABS Plastic
  • Operating temperature: 0˚C ~ 50˚C
  • Display: Green LED with 25mm-Height Digit

Applications :

  • Weighing

Technical Specifications :

Capacity (kg.) Accuracy (g) Load Cell Platform Size (mm) Frame Platter
500 100 | 200 Tool Steel 1000x1000 | 1200x1200 Mild Steel MS Chequered
500/1000/1500 100 | 100 | 200 Tool Steel 1000x1000 | 1200x1200 Mild Steel MS Chequered
2000/3000/5000 500 | 500 | 1000 Tool Steel 1500x1500 | 1800x1800 Mild Steel MS Chequered
