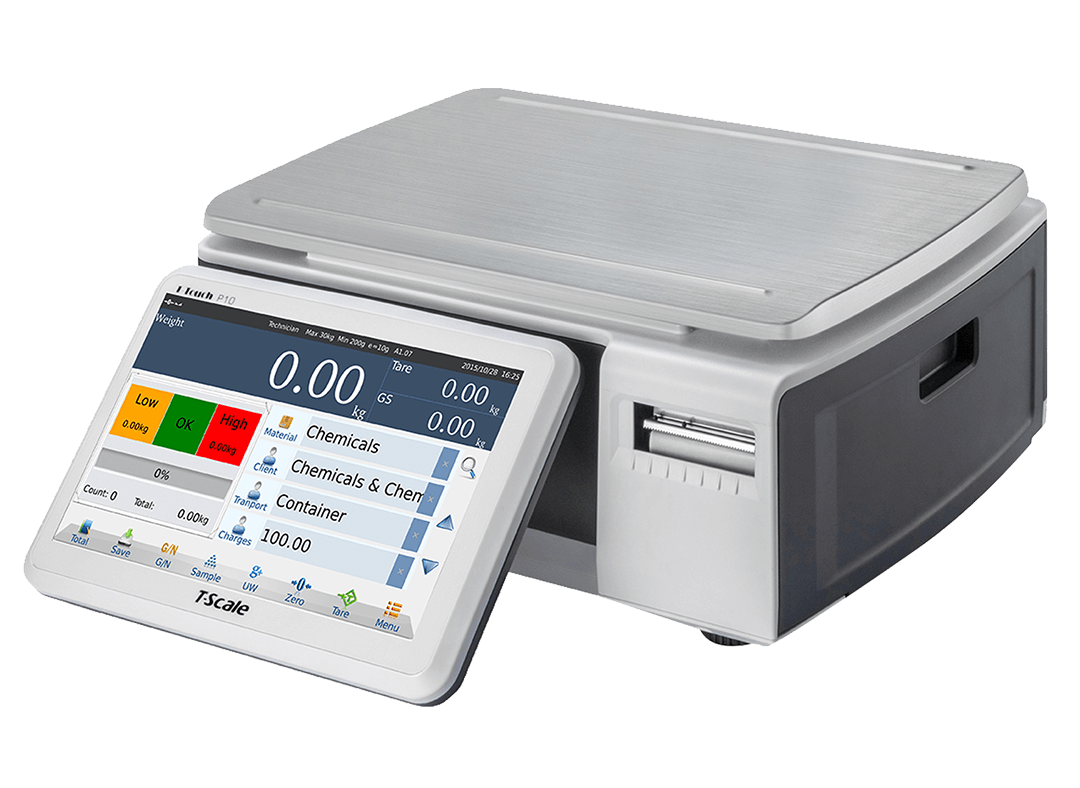

Pieces Weighing & Counting Scales with Barcode Label Printing

Part Code : TCS-05
Approx. Price : 48500.00 INR
Weight Counting Digital Scale
We are engaged in offering wide range of Counting Scales. These scales are manufactured using high grade raw material procured from reliable vendors of the industry. Moreover, we offer these scales with display weight, unit price and amount on both the sides of the machine. Furthermore, all models of these scales are available with piece counting facility and can be availed at market leading prices.

General Specifications :

Display 7” colour touch screen operator display (800X480)
H/V 16:9
Touch Screen Resistive touch screen
Keyboard 5 Keys (Mechanical Switch)
Housing ABS Plastic
Max. Divisions 3,000e; 30,000d
Load cell excitation voltage 5V/150mA
ADC update ≤ 1/10 second
Operate Temp 0
Power Input: AC100~240V,50/60HZ; Output: DC12V/2500mA
Battery 6V/4Ah rechargeable battery as standard

Key features :

  • Standard TOS ||Embedded Operating System (1.2GHz) (LINUX)
  • CPU: A9 single core; Memory: RAM 512MB; Flash 1GB
  • Checking Weighing and Check Counting application
  • PLU product management, 9999 each ID storage capacity, up to 8 ID selectable
  • Multi-weighing unit’s selection
  • Report Management: Daily, Monthly, Product, Client report, etc
  • Print formats and customized print formats selection
  • Multi-language selection
  • TTC Back Office Software Management allows to make product update
  • Create customized print format and report management, data import & export, etc.
  • Standard 2*RS-232; 2*USB2.0; 1*RJ45
  • Optional WIFI application
  • Label format can be freely designed
  • Able to store maximum of 9999 label formats, each PLU can quote different label format in the library
  • External label printing and continuing paper printing
  • Powerful management software, high speed uploading and downloading
  • Able to set various forms of barcode

Technical Specification :

Model Accuracy (g) Platter material
6kg I 15kg I 30kg 1g I 2g I 5g Stainless Steel 350 x 290mm
