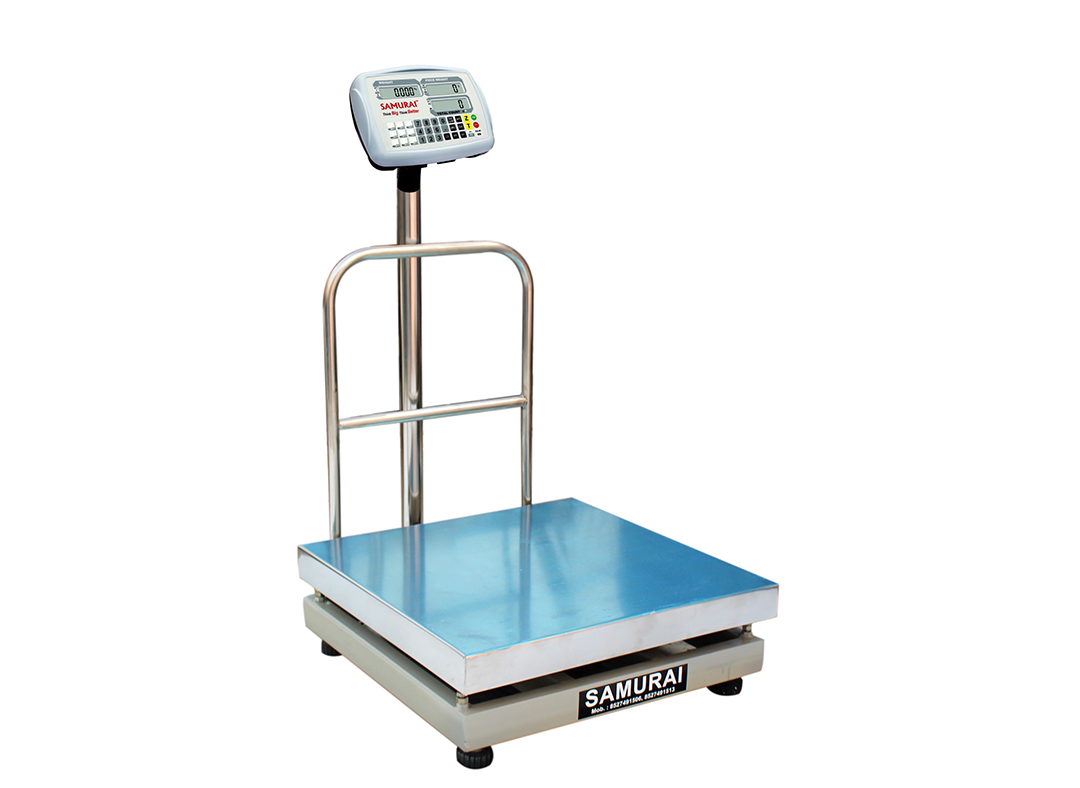

Platform Weighing and Counting Scale

Part Code : TCS-06
Approx. Price : 43950.00 INR
Weighing and Counting Scale
We are instrumental in providing our clients a broad range of Platform Weighing and Counting Scales that is manufactured using supreme class raw materials as per the set industry norms. To ensure eminence and flawlessness, this is rigorously tested by our quality controllers on various parameters. This is broadly known for its high performance, corrosive resistant nature, accurate reading, perfect finish, compact design and durability. This Counting Scale is available in various capacities to fulfill the wide needs of the clients.

Hardware :

  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
  • Large, grade stainless steel pan allows easy cleaning
  • RS-232 interface is available to provide speedy connection to computers and printers
  • Overload protection helps prevent damage to internal components
  • Rugged construction stands up to industrial use
  • Supports connection to platforms with up to four load cells

Software :

  • External calibration allows for verification and adjustment with weights
  • Parts counting with freely selectable sample sizes
  • Parts counting optimization automatically refines piece weight as parts are added
  • Preset tare function speeds the process of repetitive weighing
  • Product look up (PLU) memory locations store a range of items for recall
  • Programmable for counting to a preset number of parts
  • Quick and easy configuration using the keypad
  • Zero-tracking feature ensures display returns to zero reading
  • User can program alarm to sound when preset total is reached

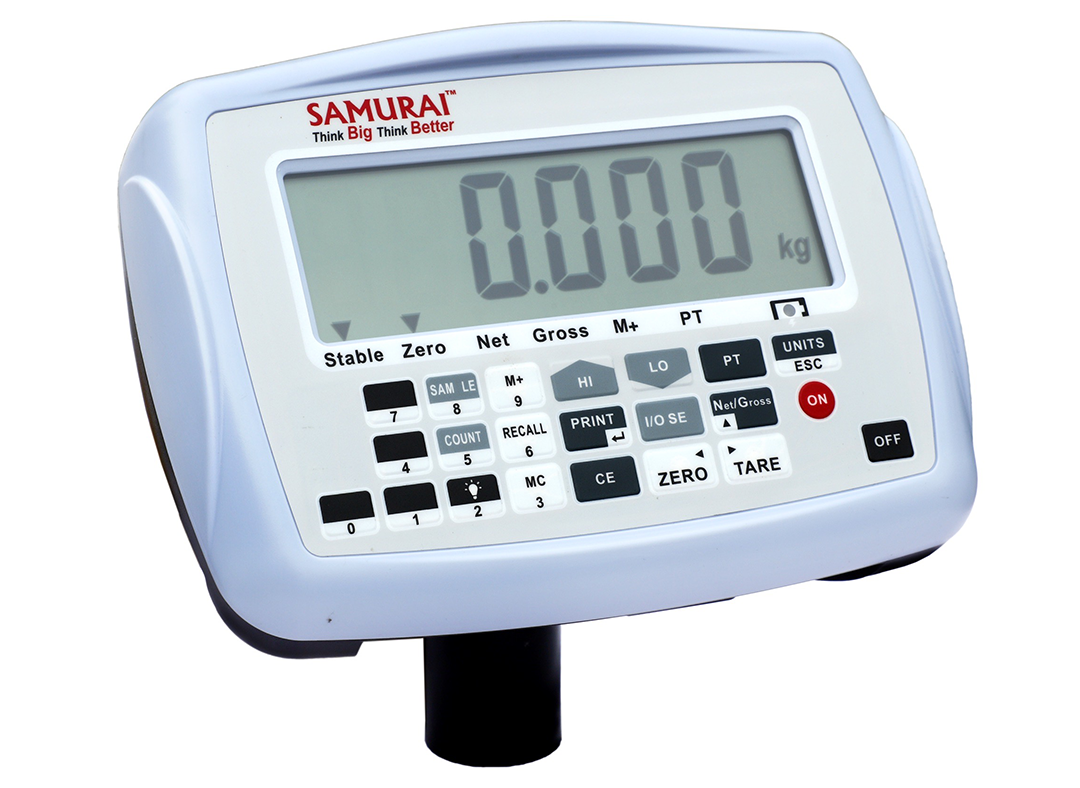

Display :

  • Backlit LCD shows weight, unit weight and count in one convenient location
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"

Power :

  • Rechargeable battery included for operation almost anywhere
  • Programmable auto power-off to save energy

Technical Specification :

Capacity (kg.) Accuracy (g) Load Cell Platform Size (mm) Framework Platter Platter
50/100 5/10 Tool steel 400 x 400 MS Stainless Steel
100/200/300 10/20/50 Tool steel 500 x 500 MS Stainless Steel
100/200/300/500 10/20/50/50 Tool steel 600 x 600 MS Stainless Steel
300/500 50 Tool steel 750 x 750 MS Stainless Steel
500/1000 50/100 Tool steel 1000 x 1000 MS MS Chequered plate
