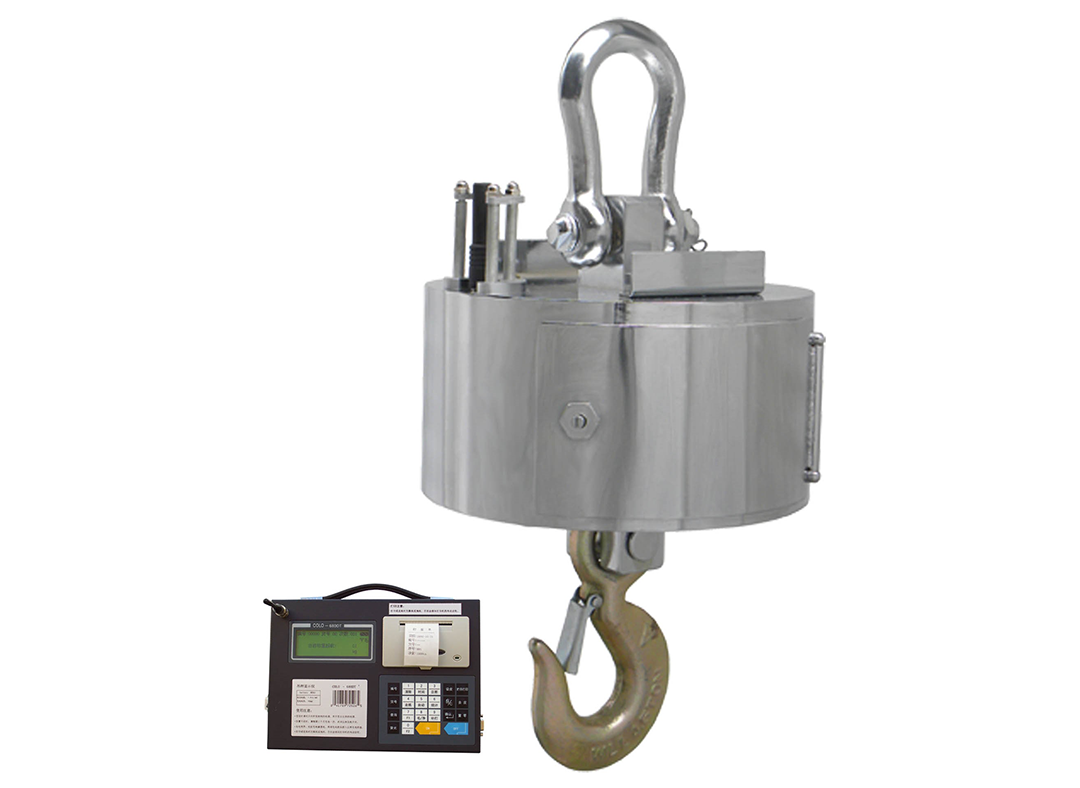

Heat-resisting crane weighing scales are among the most precise and reliable crane weighing machines available. Built with rugged construction, these scales are designed for rough industrial use in environments with extremely high temperatures. Engineered to deliver accurate results even under heavy loads and harsh conditions, these scales are essential for industries requiring reliable weighing solutions in high-heat environments.
At Samurai, we offer a wide variety of crane scales to suit specific customer requirements. Our scales come in different load capacity ranges, designs, and feature sets, allowing you to choose the perfect solution for your application.
| Model No. | : | STIPL-HS |
|---|---|---|
| Part Code | : | CSHTP |
| Price | : | 186875.00 |
Special design: Suitable for high-temperature casting industries (up to 1600°C).
Multi-function: Features gross/net weighing, zeroing, date/time display, data memory, statistics, search, overload warning, filter, low battery warning, and power-saving function.
Equipped with a backlit LCD for easy operation, durable steel housing, high-tension hook and shackle, and Ni-H battery for environmental protection.
| Specification | Details |
|---|---|
| Accuracy Class | According to OIML C3 |
| A/D transfer speed | ≥50 times/second |
| Max. internal code | 1,000,000 |
| Loadcell input Voltage | DC 5V |
| Display | 24mm 6digits LCD with backlight |
| Power on zero range | 20% Cap. |
| Zero range by manual | 4% Cap. |
| Tare range | 100% Cap. |
| Reading stable time | ≤5s |
| Overload warning | Capacity |
| Safe Load | 125% Cap. |
| Limit Load | 400% Cap. |
| Scale battery | 4.8V/3.3Ah Ni-H rechargeable battery |
| Indicator battery | 18650 Lithium rechargeable battery |
| Humility Range | 20℃, ≤85% |
| Distance | 200m（without obstacle） |
| Frequency | 433MHz |
The minimum distance between a heat-proof crane scale and a high-temperature source can vary based on the specific design and heat resistance ratings of the crane scale. Generally, here are some guidelines:
Always refer to the manufacturer's guidelines for recommended distances. They often provide specific instructions based on the scale's heat resistance capabilities.
| 1000°c | 1200°c | 1400°c | 1600°c |
|---|---|---|---|
| 1.6m | 1.8m | 2m | 2.2m |
| Model | Capacity | Resolution | A(mm) | C(mm) | E(mm) | H(mm) | Ø1 (mm) | Ø2 (mm) | G. Weight |
|---|---|---|---|---|---|---|---|---|---|
| CSHT01 | 1000kg | 0.5kg | 67 | 35 | 160 | 450 | 270 | 400 | 48 |
| CSHT02 | 2000kg | 1kg | 67 | 35 | 160 | 450 | 270 | 400 | 48 |
| CSHT03 | 3000kg | 1kg | 95 | 45 | 160 | 510 | 270 | 520 | 50 |
| CSHT04 | 5000kg | 2kg | 113 | 55 | 185 | 625 | 325 | 520 | 56 |
| CSHT05 | 10000kg | 5kg | 122 | 65 | 185 | 710 | 325 | 520 | 65 |
| CSHT06 | 15000kg | 5kg | 144 | 70 | 185 | 835 | 325 | 520 | 90 |
| CSHT07 | 20000kg | 10kg | 166 | 85 | 185 | 900 | 325 | 620 | 95 |
| CSHT08 | 30000kg | 10kg | 285 | 100 | 220 | 1140 | 375 | 620 | 215 |
| CSHT09 | 50000kg | 20kg | 360 | 160 | 280 | 1680 | 450 | 750 | 580 |
