Crane Scale High Temrature Standard

Crane Scale with Thermal Protection

A Crane Scale with Thermal Protection is designed for industrial applications involving high temperatures, particularly in industries like foundries, metal treatment plants, and steel manufacturing. These scales are equipped with a heat insulating shield that allows them to perform accurately in extremely hot environments without disruptions in their results.
Here’s the refined version:
Special design: Suitable for high-temperature casting industries (up to 1600°C).
Multi-function: Features gross/net weighing, zeroing, date/time display, data memory, statistics, search, overload warning, filter, low battery warning, and power-saving function.

Model No.	:	STIPL-HS
Part Code	:	CSHT
Basic Price	:	149500.00

Catalogue

User-friendly design

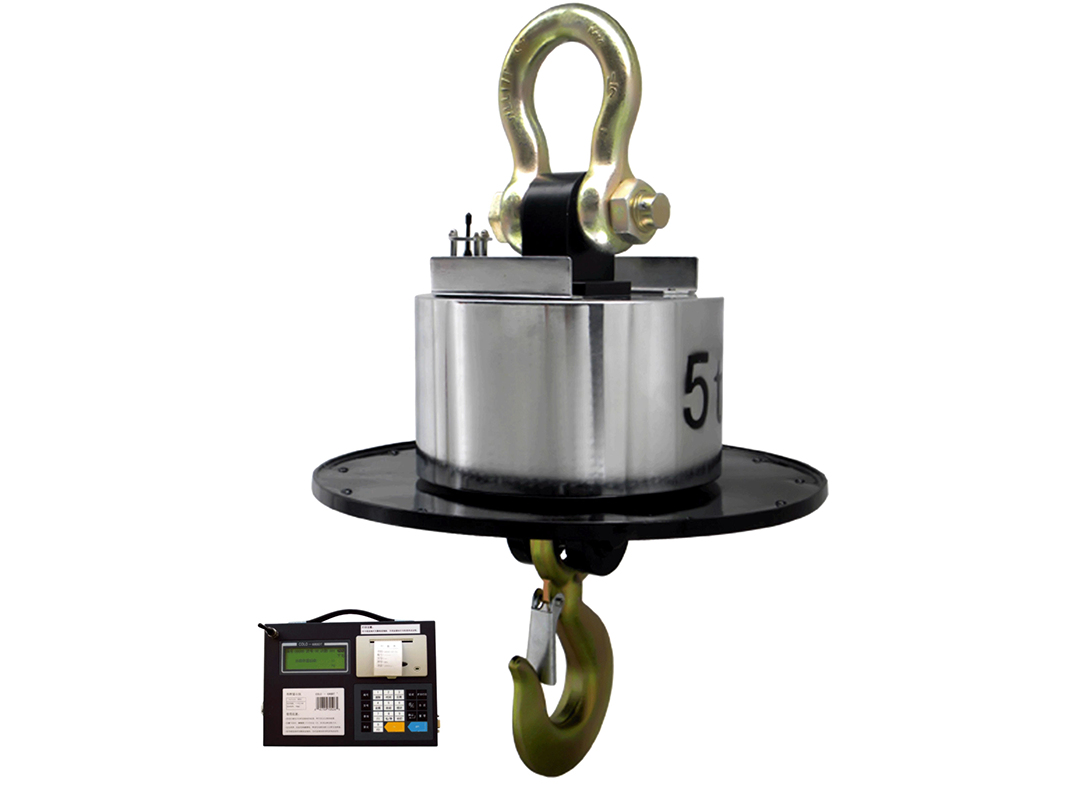

Equipped with a backlit LCD for easy operation, durable steel housing, high-tension hook and shackle, and Ni-H battery for environmental protection.

Key Features

Thermal Protection: Shielded against high temperatures, ensuring durability and accuracy even in heat-intensive environments.
Safe Operating Distance: The recommended operating distance from a heat radiation source is 2 meters, ensuring the safety of both the equipment and the operator.
Data Storage: Capable of storing data from up to 100 samples, making it efficient for batch processing and record-keeping.
Digital LED Display: The display remains clearly visible under any lighting conditions, allowing operators to read measurements easily.

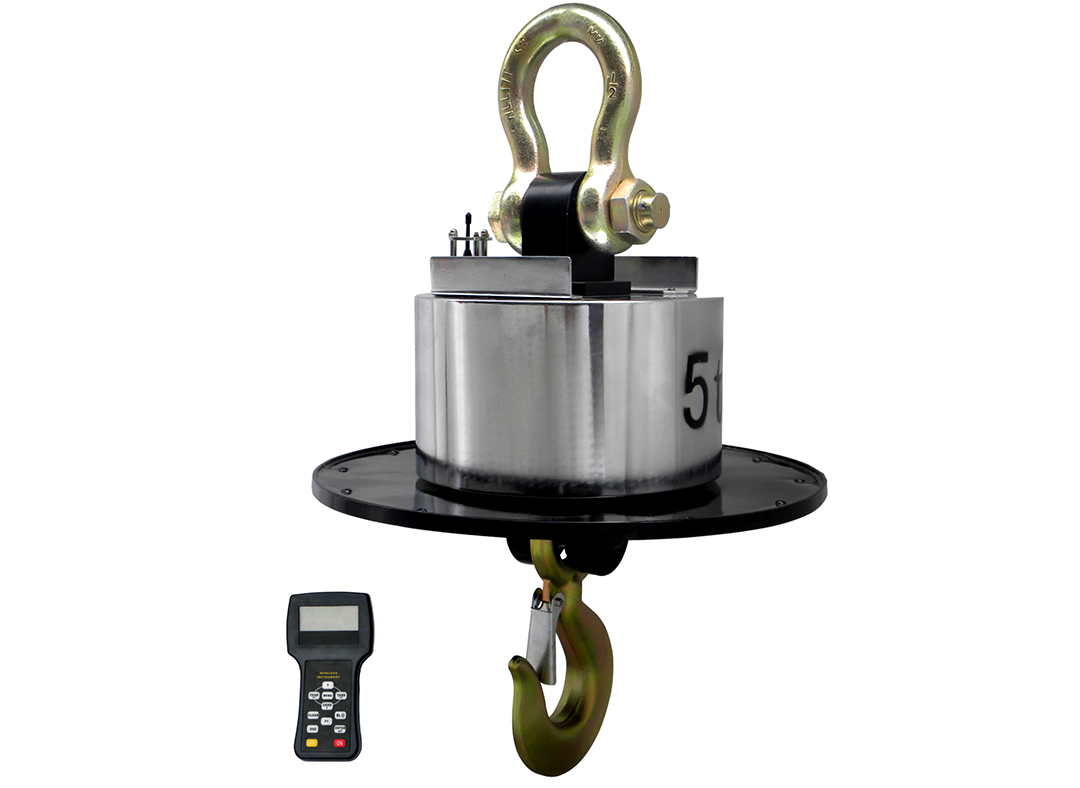

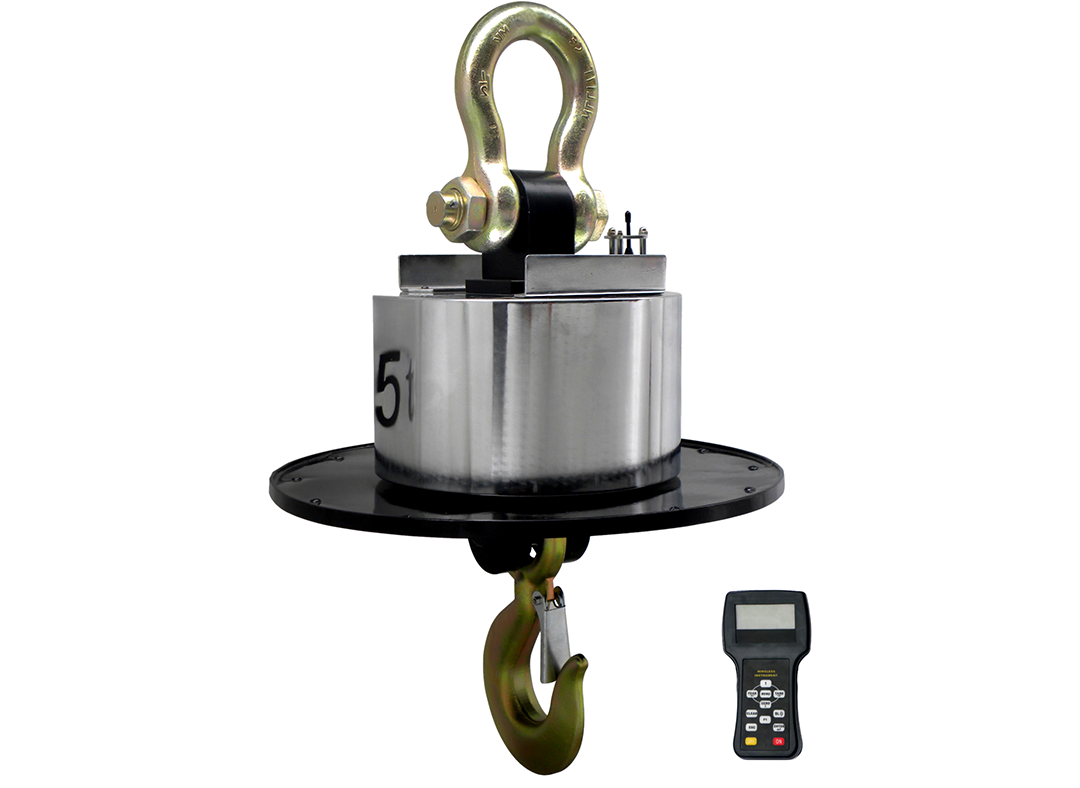

Infrared Remote Keypad: Enables hands-free operation, enhancing user convenience and safety, especially in hazardous or high-temperature settings.
These features make thermal crane scales ideal for the foundry-based industry, metal treatment plants, steel industries, and other sheet metal industries, where reliable and safe weight measurements are crucial in high-temperature environments.

Specification	Details
Accuracy Class	According to OIML C3
A/D transfer speed	≥50 times/second
Max. internal code	1,000,000
Loadcell input Voltage	DC 5V
Display	24mm 6digits LCD with backlight
Power on zero range	20% Cap.
Zero range by manual	4% Cap.
Tare range	100% Cap.
Reading stable time	≤5s
Overload warning	Capacity
Safe Load	125% Cap.
Limit Load	400% Cap.
Scale battery	4.8V/3.3Ah Ni-H rechargeable battery
Indicator battery	18650 Lithium rechargeable battery
Humility Range	20℃, ≤85%
Distance	200m（without obstacle）
Frequency	433MHz

Instrument size: 220x105x50mm handheld size with LCD display, wireless double-sided communication (can tare, zero, calibration and parameter setting). 5 digits LCD display with backlight digit height：25mm.Many functions on instrument keyboard. Such as tare, zero, peak, filter setting, gravity regulation.
Battery: 4pcs AA size alkaline batteries, 40 hours radio continuous using
Antenna: Built-in antenna
Update rate from scale: 4 times per second.
Radio Frequency: Standard 433MHz wireless module, up to 200m wireless distance up to 128 channels available

Steel plate with heat-resistant material inside.
Seamless steel pipe enclosure for maximum protection.
Menu operation mode, calibration, saving, searching, printing easy to operate.
Indicator Adopts ∑-∆A/D conversion technology.
Able to setup zero (auto/manual) range, filtering range.
Weighing data save protection in case of power off.
Battery charger with several protection modes to extend life of rechargeable battery.
Standard RS232 communication interface (optional).
Portable design, indicator packed in portable carry case, easy to operate outdoor.
Gathering up to data records of 2000 weighing, records can be sorted, searched and printed.
Power saving mode, indicator will turn off automatically after 30 minutes with no operation.
With 32 channels optional, so 32 crane scales can have operated independently in the same air place without interface.

The minimum distance between a heat-proof crane scale and a high-temperature source can vary based on the specific design and heat resistance ratings of the crane scale. Generally, here are some guidelines:

Always refer to the manufacturer's guidelines for recommended distances. They often provide specific instructions based on the scale's heat resistance capabilities.

1000°c	1200°c	1400°c	1600°c
1.6m	1.8m	2m	2.2m

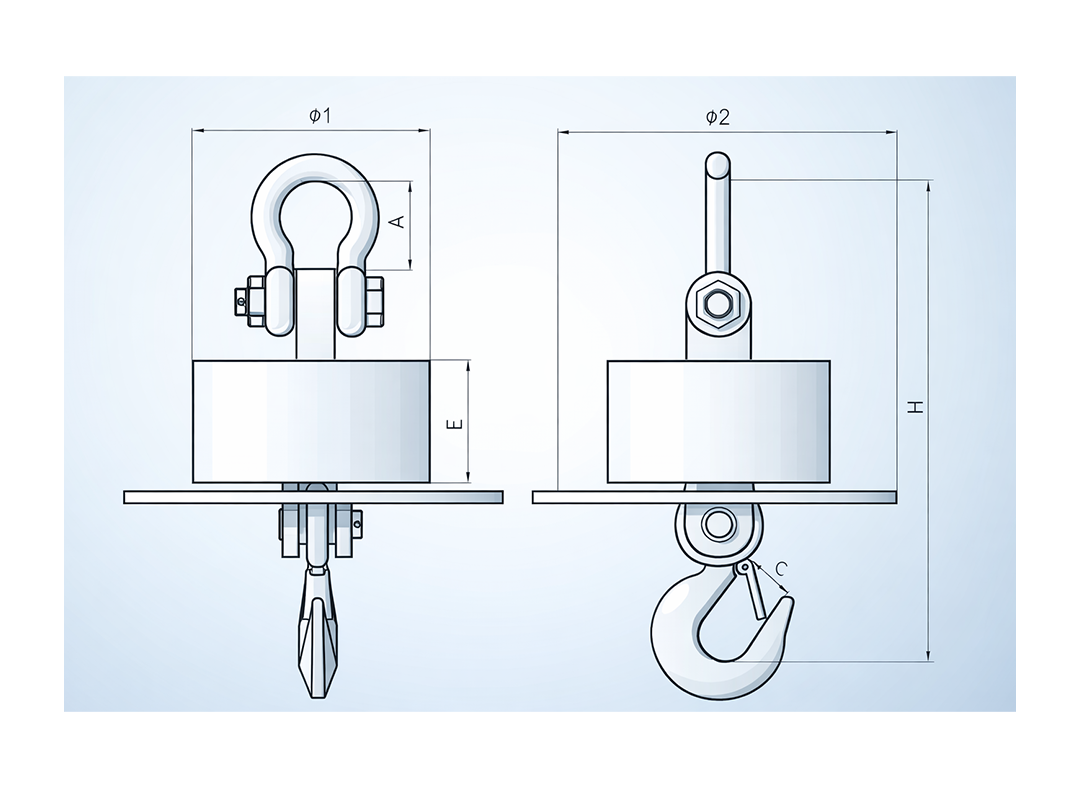

Part Code	Capacity	Division	A (mm)	C (mm)	E (mm)	H (mm)	Φ1 (mm)	Φ2 (mm)	G.W. (kg)
CSHT01	1000kg	0.5kg	67	35	160	450	270	400	48
CSHT02	2000kg	1kg	67	35	160	450	270	400	48
CSHT03	3000kg	1kg	95	45	160	510	270	520	50
CSHT04	5000kg	2kg	113	55	185	625	325	520	56
CSHT05	10000kg	5kg	122	65	185	710	325	520	65
CSHT06	15000kg	5kg	144	70	185	835	325	520	90
CSHT07	20000kg	10kg	166	85	185	900	325	620	95
CSHT08	30000kg	10kg	285	100	220	1140	375	620	215
CSHT09	50000kg	20kg	360	160	280	1680	450	750	580
