Crane Scale-High Temrature

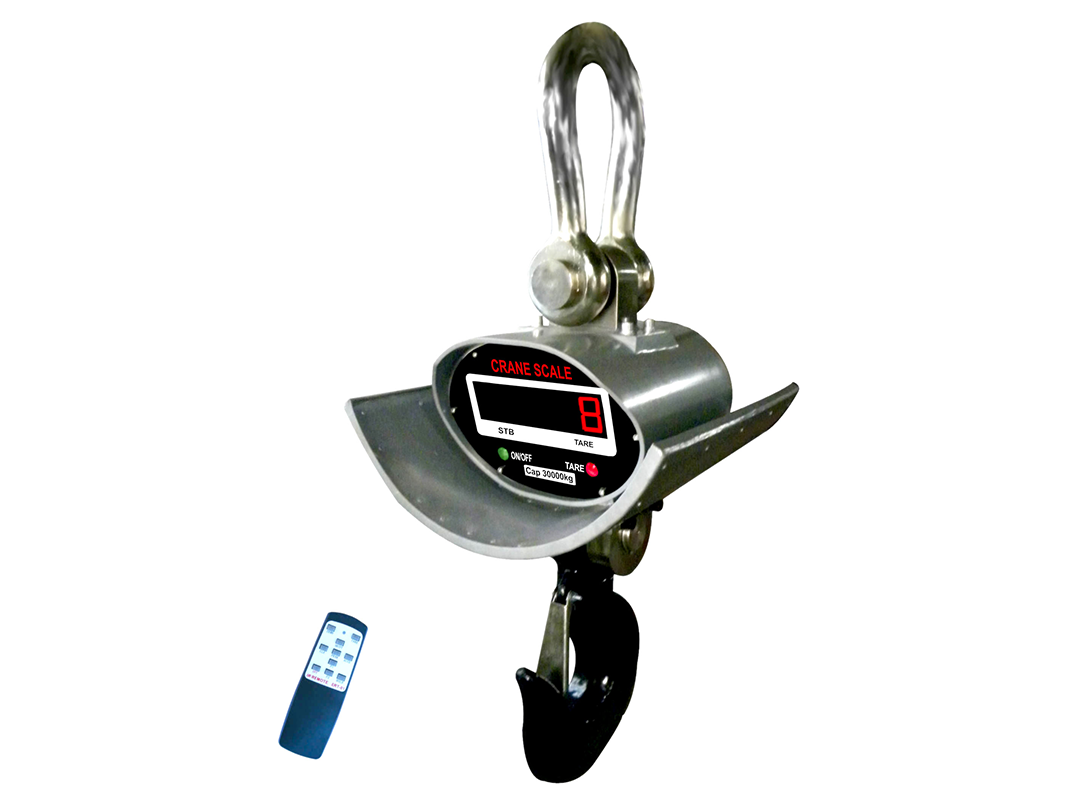

The Samurai High Temperature Crane Scale is a heavy-duty industrial crane scale specially engineered for the casting and metal processing industry, where extreme heat and heavy loads are common. This High Temperature Crane Scale is designed to operate safely near temperatures up to 1600°C, ensuring stable, reliable, and safe overhead weighing in harsh industrial environments. Manufactured according to OIML Class III standards, this high temperature industrial crane scale is ideal for steel plants, foundries, forging units, and high-temperature casting applications.

Model No.	:	STIPL-CS
Part Code	:	CSTH
Price	:	316250.00

Catalogue

Seamless Steel Pipe Enclosure – Extruded steel body for protection against heat, dust, and impact.
High-Temperature Resistant Construction – Suitable for use near molten metal and casting furnaces
High-Brightness LED Display Module – Large 5-digit red LED for long-distance visibility
Forged Steel Shackle – Strong top suspension for safe overhead lifting
Heavy-Duty Bottom Hook with Safety Latch – Ensures secure load handling
Protected Internal Load Measuring System – Enclosed mechanism for long service life
Wireless Remote Controller – Safe operation and calibration from a distance

OIML Class III Accuracy Standard – Consistent and dependable weighing performance
Special Design for High-Temperature Industry – Safe operation near environments up to <1600°C
Multi-Weighing Units – kg (default), lb, and N selectable
Multi-Function Operation – Tare, Zero, Auto Zero Tracking, Total, Hold, Overload Warning & Record
Zero Range: Up to 4% of full scale
Tare Range: Supports up to 100% of full scale
Remote Calibration – Calibration supported through remote controller
Large LED Display – 58 mm (2.3”) 5-digit red LED (20t model uses 45 mm LED)
Fast Stable Time : ≤ 10 seconds
Overload Indication – 100% F.S. + 9e
Maximum Safety Load – 125% of Full Scale (F.S.)
Ultimate Load Capacity – 700% of Full Scale (F.S.)
Gravity Compensation – Ensures stable readings during lifting
User-Friendly Operation – Simple controls and clear display
Remote Operating Distance – Maximum up to 15 meters
Remote battery – AAA battery, 1.5V × 2
Operating Humidity – ≤ 85% RH under 20°C

Long Battery Backup: Up to 70 hours
Battery Operated System – Fully sealed lead-acid battery
Battery Type: 6V / 7Ah rechargeable battery
Low Battery Indication – Alerts user before discharge
Automatic Power Off – Reduces power consumption
Power Saving Mode – Extends battery life
Charging Adapter – DC 9V / 1000 mA

Model	Part Code	Cap.	Accuracy	A(mm)	B(mm)	C(mm)	D(mm)	H(mm)	N.W(kg)	G.W. (kg)
STIPL-CS	CSTH1	20000kg	10kg	260	350	100	370	1055	120kg	135kg
STIPL-CS	CSTH2	30000kg	10kg	295	470	110	460	1140	200kg	120kg
STIPL-CS	CSTH3	50000kg	20kg	360	670	160	570	1680	550kg	580kg

The minimum distance between a heat-proof crane scale and a high-temperature source can vary based on the specific design and heat resistance ratings of the crane scale. Generally, here are some guidelines:

Manufacturer Specifications: Always refer to the manufacturer's guidelines for recommended distances. They often provide specific instructions based on the scale's heat resistance capabilities.

1000℃	1200℃	1400℃	1600℃
1.6m	1.8m	2m	2.2m

Manufacturing industries
Warehousing & logistics
Construction & infrastructure projects
Steel plants & foundries
Heavy engineering units
