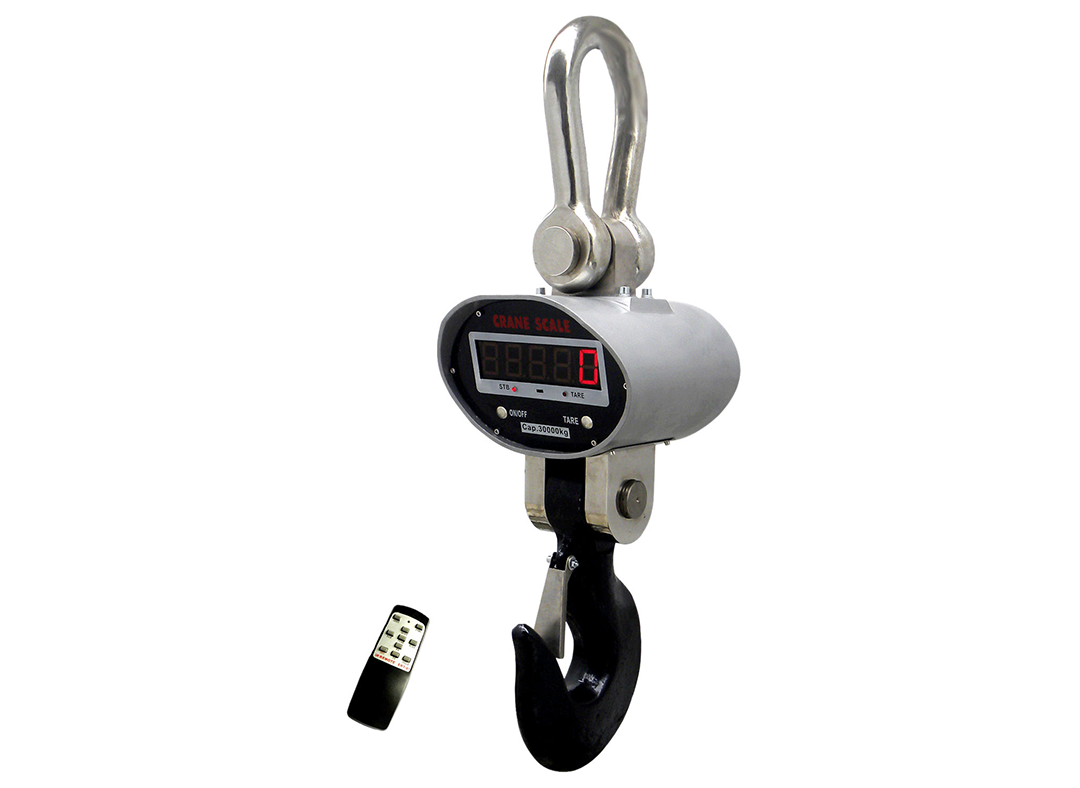

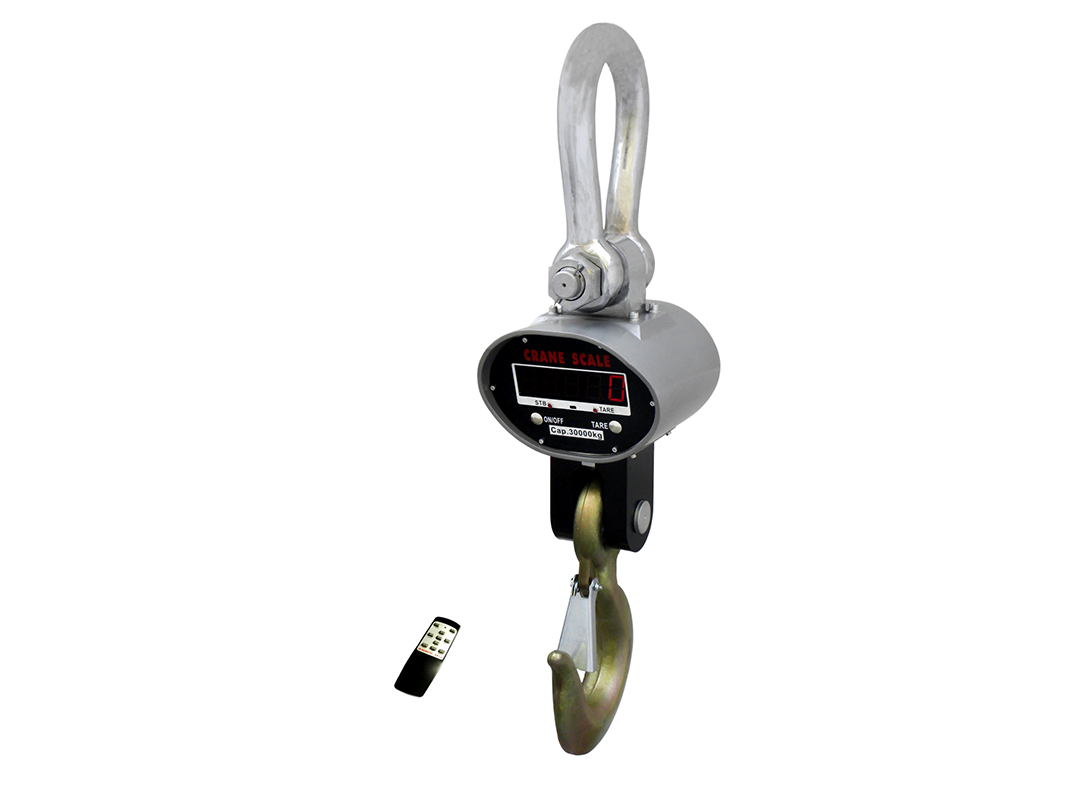

Crane Scale SS-Heavy Duty

The High-Capacity Stainless Steel Crane Scale from Samurai Technoweigh India Pvt. Ltd. is designed for heavy-duty industrial weighing where safety, durability, and consistent performance are critical. Manufactured as per OIML Class III standards, this crane scale delivers reliable weight measurement for overhead loads in factories, warehouses, construction sites, steel plants, and logistics operations. Its rugged construction, clear LED display, and remote operation make it an ideal solution for demanding industrial environments.

Model No.	:	STIPL-CS
Part Code	:	CSSH
Basic Price	:	339250.00

Catalogue

Seamless Steel Pipe Enclosure – Extruded seamless steel body protects internal components from dust, moisture, and mechanical impact
Stainless Steel Structure – Suitable for harsh industrial and commercial environments
Forged Steel Top Shackle – Strong and secure suspension for overhead lifting
Heavy-Duty Bottom Hook with Safety Latch – Ensures safe and stable load handling
Enclosed Load Measuring System – Internal load sensing mechanism protected from external damage
Wireless Remote Controller – Enables safe operation and calibration from a distance

Accuracy Standard: Complies with OIML Class III
High-Visibility LED Display Panel – 58 mm (2.3”) 5-digit red LED for long-distance visibility
Multi-Weighing Units – Supports kg (default), lb, and N
User-Friendly Operation – Simple controls with clear display and easy handling
Gravity Compensation – Ensures stable readings during lifting
High Safety Factor – Designed for safety up to 4 times the rated capacity
Zero Range: Up to 4% of full scale
Tare Range: Supports up to 100% of full scale
Auto Zero Tracking – Maintains accuracy during prolonged operation
Hold Function – Locks the displayed weight for easy reading
Total Function – Accumulates multiple weighing values
Overload Warning & Record – Visual alert when load exceeds capacity and records overload events
Stable Time ≤ 10 Seconds – Quick and reliable weight stabilization
Overload Indication – 100% F.S. + 9e
Maximum Safety Load – 125% of Full Scale
Ultimate Load Capacity – Up to 400% of Full Scale
Remote Control Calibration – Easy calibration through wireless remote
Operating Temperature – (-10°C to +40°C)
Operating Humidity – ≤ 85% RH under 20°C
Remote Battery – AAA size, 1.5V × 2
Remote Operating Distance – Maximum up to 15 meters

Long Battery Backup: Up to 70 hours continuous operation
Battery Type – 6V / 7Ah sealed lead-acid battery
Low Battery Indication – Alerts user before battery drains
Automatic Power Off – Saves power when not in use
Power Saving Function – Extends battery life during long operations
Adapter Support – DC 9V / 1000 mA adapter for charging

Manufacturing industries
Warehousing & logistics
Construction & infrastructure projects
Steel plants & foundries
Heavy engineering units

Model No.	Part Code	Cap.	Resolution	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	H(mm)	N.W(kg) G.W
STIP-CS	CSSH1	30000kg	10kg	380	460	110	280	160	1150	165	180kg
STIP-CS	CSSH2	50000kg	20kg	490	660	160	340	230	1700	480	510kg
