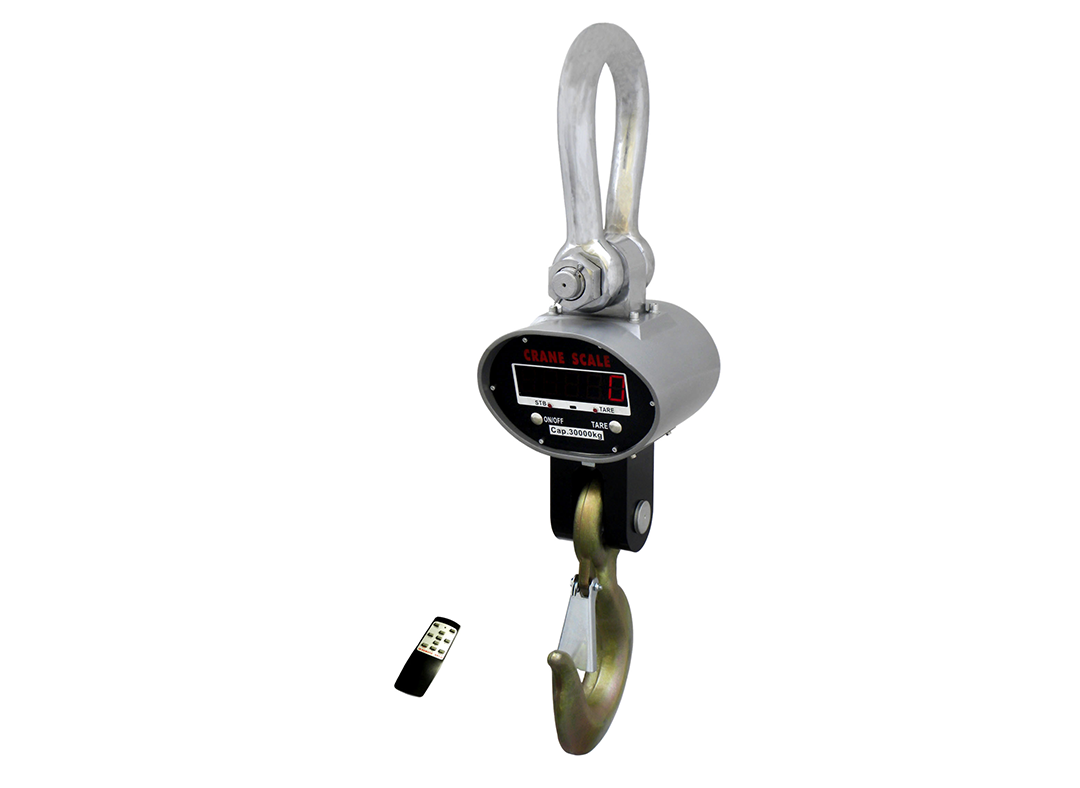

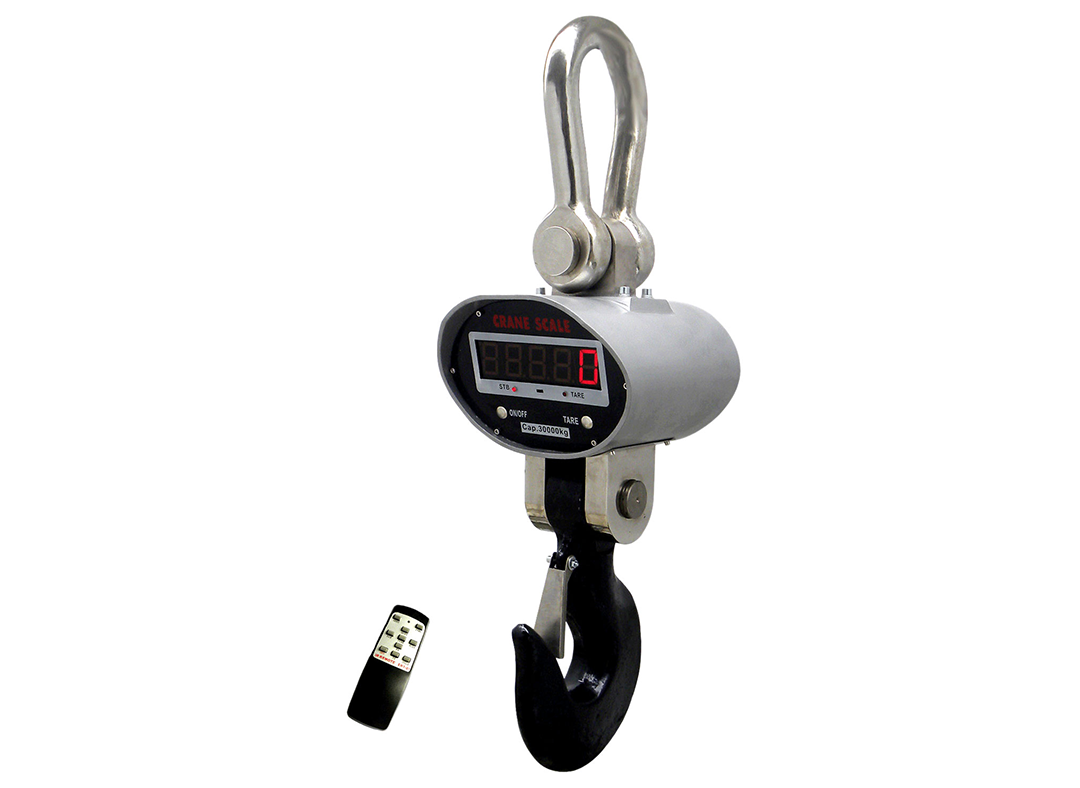

Crane Scale SS-Standard

Industrial Crane Scale – Reliable & Safe Weighing Solution

Samurai Industrial Crane Weighing Scale is designed for industrial weighing, overhead load measurement, and safe material handling. With a seamless steel body, high-visibility LED display, and remote-controlled operation, this crane scale delivers dependable performance in demanding environments. Manufactured as per OIML Class III, it ensures stability, safety, and long operational life.

Model No.	:	STIPL-CS
Part Code	:	CSSS
Price	:	224250.00

Catalogue

Seamless Steel Pipe Enclosure – Strong extruded steel body for protection against impact and harsh conditions
45 mm High-Brightness LED Display – 5-digit red LED for clear long-distance visibility
Heavy-Duty Hook & Shackle – Designed for secure lifting and stable load handling
Precision Load Measuring System – Internal load sensing mechanism for reliable results
Wireless Remote Controller –Maximum 15-meter operating distance for safe control

Accuracy Standard – Designed according to OIML Class III
Display – 45 mm (1.8”) 5-digit red LED
Multi-Weighing Units – kg (default), lb, and N selectable
Zero Range – 4% of Full Scale (F.S.)
Tare Range – 100% of Full Scale (F.S.)
Stable Time – ≤ 10 seconds for fast readings
Auto Zero Tracking – Maintains consistent readings during continuous use
Zero Range: Up to 4% of full scale
Tare Range: Supports up to 100% of full scale
Hold Function – Locks weight reading on display
Total Function – Accumulates multiple weighing values
Overload Indication – 100% F.S. + 9e
Maximum Safety Load – 125% of Full Scale
Ultimate Load Capacity – Up to 400% of Full Scale
Operating Temperature – (-10°C to +40°C)
Operating Humidity – ≤ 85% RH under 20°C
Remote Controller Range – Maximum upto 15 meters
Remote Calibration – Calibration supported through remote controller

Long Battery Backup: Up to 70 hours continuous operation
Power Adapter – DC 9V / 1000 mA
Battery Type – Fully sealed lead-acid battery, 6V / 7Ah
Long Battery Backup: Up to 70 hours continuous operation
Power Saving Mode – Auto power-off with low battery indication
Automatic power-off function for energy saving
Remote controller powered by AAA batteries (1.5V × 2)

Steel & Foundry Industries
Hot Rolling Mills
Furnace & Heat Treatment Plants
Casting & Smelting Units
Metal Processing Industries
High Temperature Industrial Areas
Power Plants & Thermal Units
Refractory & Alloy Manufacturing Units

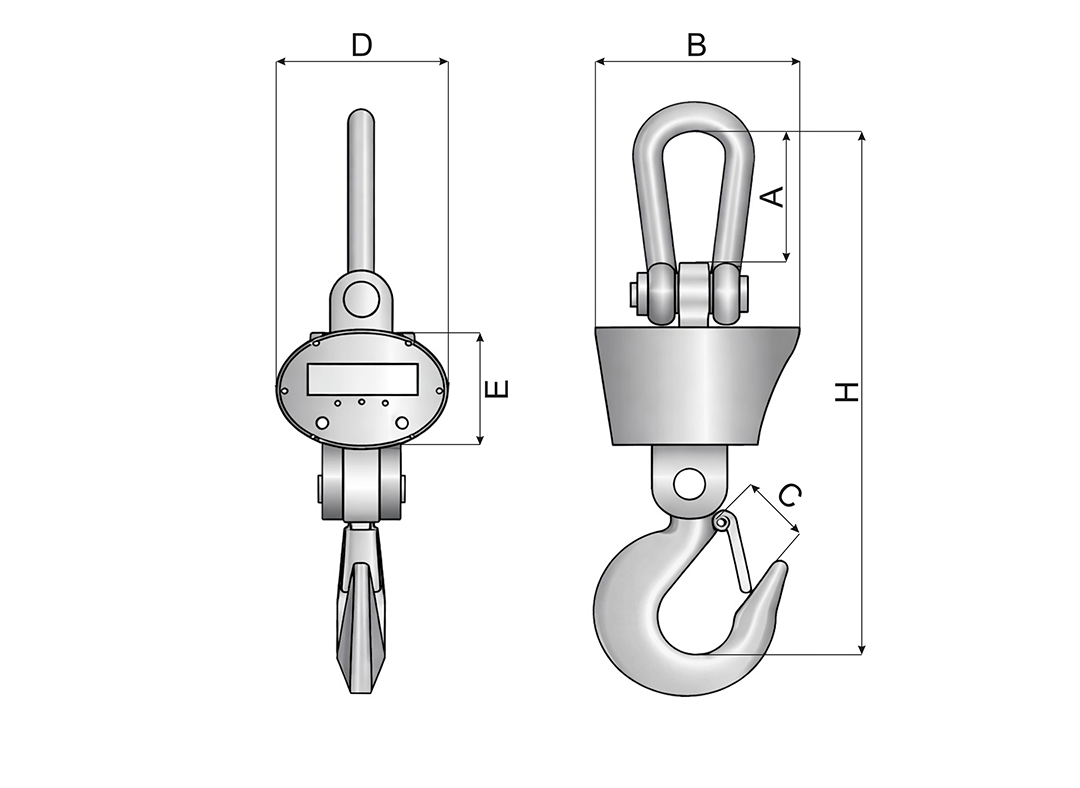

Model	Part Code	Cap.(kg)	Accuracy	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	H(mm)	N.W(kg)	G.W.
STIPL-CS	CSSS1	30000kg	10kg	260	340	100	300	200	1055	105	115kg
