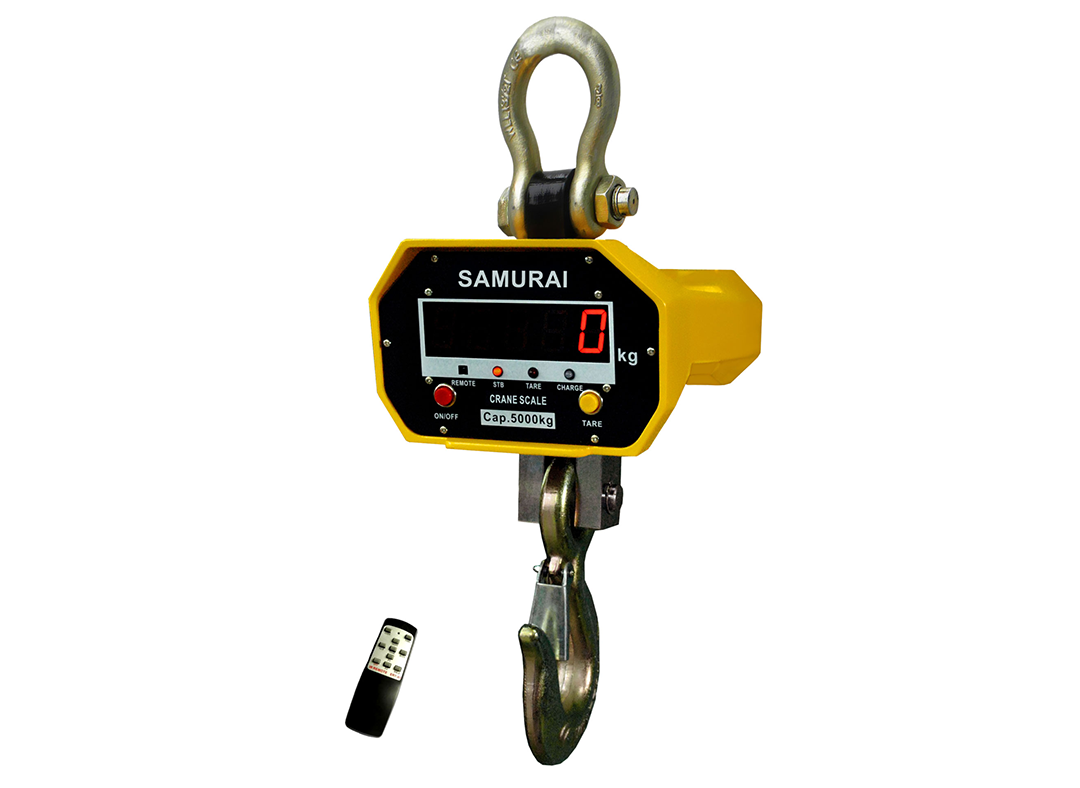

Crane Scale-Standard

Crane Scales for Heavy Duty Industrial Weighing

At Samurai Technoweigh India Pvt.Ltd, we manufacture some of the most durable and dependable crane scales available on the market. Our crane scales are equipped with wide angle displays that are easy to read, even from a distance, ensuring convenience and efficiency during use. Engineered with high quality raw materials, the latest tools, and advanced technology, our products are built to withstand the toughest industrial environments.
We are committed to delivering products that meet international quality standards, offering a comprehensive range of digital crane scale designed to meet the diverse needs of our industrial clients. Whether you require a solution for extremely heavy loads or oversized items, Samurai’s crane scales provide the reliability, accuracy, and durability needed for your business.

Model No.	:	STIPL-HS
Part Code	:	CSS
Basic Price	:	40020.00

Catalogue

Tare, Zero, and Auto Zero Tracking.
Selectable multi-weighing units: kg (default), lb, N.
Total weight accumulation.
Hold function for locking measurements.
Overload warning and recording of the overload event.
Calibration via remote control.

Durable cast aluminum housing for protection.
Large red LED display with 5 digits (30mm digit height).
Gravity compensation for accurate readings.
Safety factor: Up to 4 times the maximum capacity.
Battery operated with low battery indication and automatic turnoff for power saving.

Standard: OIML Class III (International Organization of Legal Metrology).
Display: 30mm (1.2’) 5-digit LED display.
Zero Range: 4% of Full Scale (F.S.).
Tare Range: 100% Full Scale (F.S.).
Stable Time: ≤ 10 seconds.
Overload Indication: 100% of Full Scale (F.S.) + 9e (e = scale interval).
Maximum Safety Load: 125% of Full Scale (F.S.).
Ultimate Load: 400% of Full Scale (F.S.).
Battery Life: ≥ 50 hours.
Battery Type: Fully sealed lead-acid battery, 6V/4.5Ah.
Adapter: DC9V/1000mA.
Nominal Operating Temperature: -10°C to +40°C.
Operating Humidity: ≤ 85% RH under 20°C.
Remote Controller Distance: Minimum 15 meters.
Remote Controller Battery: AAA Size batteries, 1.5Vx2 each.

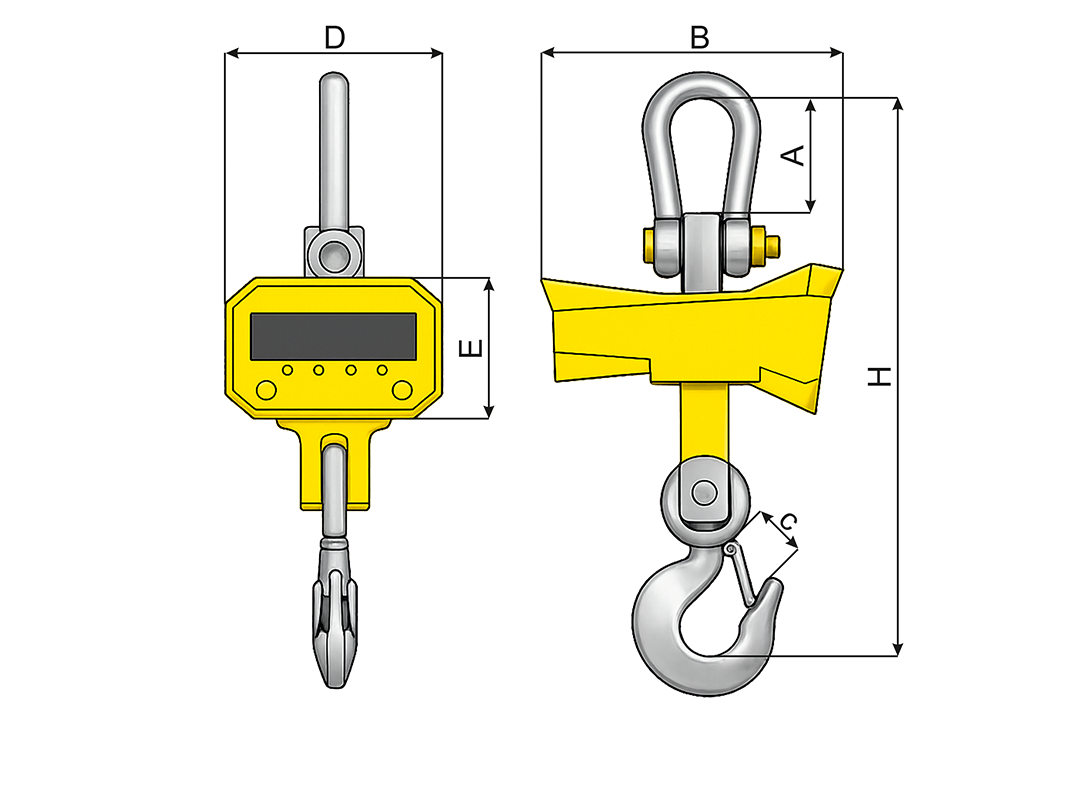

Part Code	Capacity	Resolution	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	H(mm)	Weight
CSS02	3000kg	1kg	95	260	45	195	130	460	13kg
CSS03	5000kg	2kg	125	325	55	235	158	525	19kg
CSS04	10000kg	5kg	140	325	65	235	158	660	29kg
CSS05	15000kg	5kg	175	345	70	235	160	805	57kg
CSS06	20000kg	10kg	175	345	85	235	160	870	63kg
