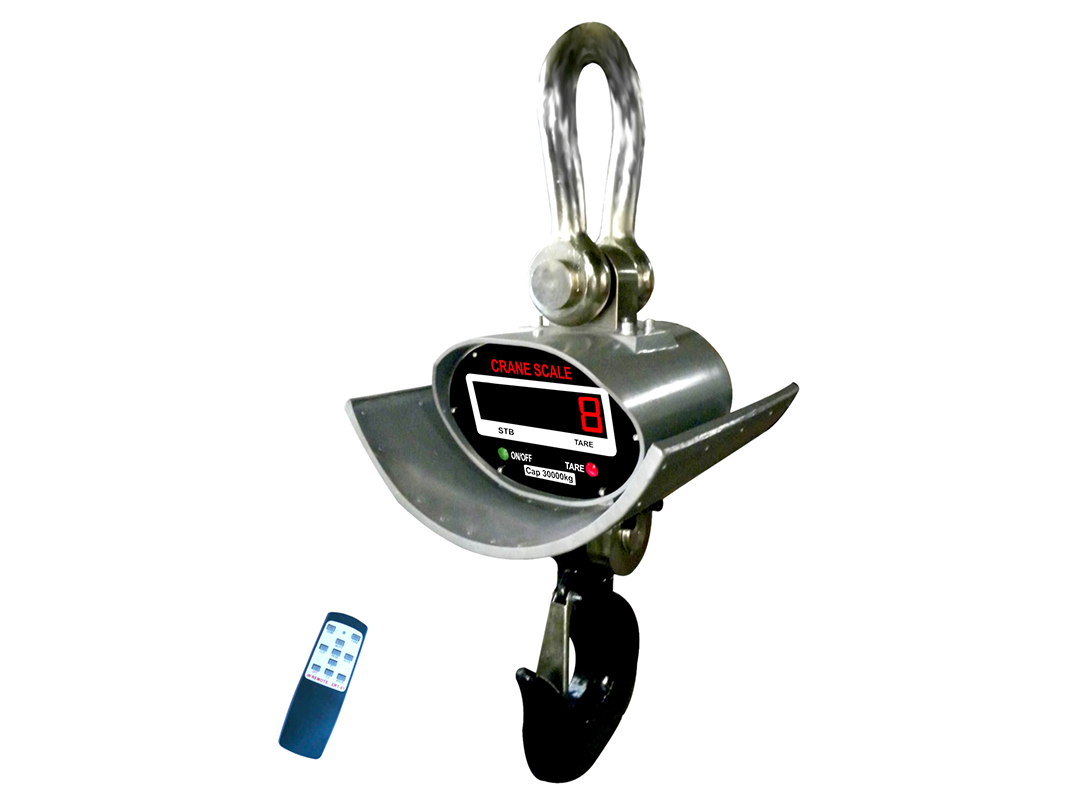

When it comes to crane weighing machines, our Heat-Resisting Crane Weighing Scales stand out as the most precise and reliable solutions in the industry. Designed with rugged construction, these scales are built to withstand rough industrial environments, especially in extremely high-temperature conditions.
| Model No. | : | STIPL-HS |
|---|---|---|
| Part Code | : | CSTH |
| Price | : | 316250.00 |
Our heat-resisting crane scales are specially engineered to deliver accurate results, even under heavy loading conditions and elevated temperatures. Whether you’re in metallurgy, foundries, or any industry where high heat is a concern, our scales ensure consistent and reliable measurements.
At Samurai, we offer a comprehensive variety of crane scales tailored to meet specific customer requirements. Choose from different load capacity ranges, designs, and features that best suit your operational needs.
Rugged Construction: Built to endure harsh conditions without compromising performance.
High Temperature Resistance: Specifically designed for accuracy in extreme heat environments.
Versatile Options : A wide range of models to accommodate various industrial applications.
Explore our collection of heat-resisting crane weighing scales and find the perfect solution for your business. Contact us today to learn more about our products and how we can meet your industrial weighing needs.
Engineered to withstand extreme heat, our crane scales are suitable for use in environments with temperatures up to 1600°C, ensuring durability and precision in demanding applications.
The enclosure is constructed from seamless extruded steel pipe, providing maximum durability and protection. This robust design ensures resistance to impacts, harsh environmental conditions, and heavy-duty usage.
Choose from various units including kilograms (kg), pounds (lb), and newtons (N), with kg as the default setting. Our scales offer flexible weighing options to suit diverse operational needs.
Equipped with essential functions such as Tare, Zero, Auto Zero Tracking, Total, Hold, Overload Warning and Record, and Calibration via remote controller. These features ensure precise and efficient weighing processes.
Features a large red 5-digit LED display with 58mm high digits for easy readability, even from a distance. Additional conveniences include gravity compensation, a safety factor up to 4 times the scale’s capacity, and battery-operated functionality with low battery indication. The automatic turn-off and power-saving functions enhance usability and extend battery life.
These features highlight the strength and versatility of your crane weighing scales, while integrating key terms that will help improve search engine visibility.
| Specification | Details |
|---|---|
| Standard | According to OIML class III |
| Display | 58mm (2.3’’) 5digits LED (20t- 45mm) |
| Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤10 seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 700% F.S. |
| Battery Life | ≥70 hours |
| Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
| Adapter | DC9V/1000mA |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Min. 15m |
| Battery of Remote Controller | AAA Size battery, 1.5Vⅹ2 |
| Part Code | Cap. | Accuracy | A(mm) | B(mm) | C(mm) | D(mm) | H(mm) | N.W(kg) | G.W. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| CSTH1 | 20000kg | 10kg | 260 | 350 | 100 | 370 | 1055 | 120kg | 135kg |
| CSTH2 | 30000kg | 10kg | 295 | 470 | 110 | 460 | 1140 | 200kg | 120kg |
| CSTH3 | 50000kg | 20kg | 360 | 670 | 160 | 570 | 1680 | 550kg | 580kg |
The minimum distance between a heat-proof crane scale and a high-temperature source can vary based on the specific design and heat resistance ratings of the crane scale. Generally, here are some guidelines:
Always refer to the manufacturer's guidelines for recommended distances. They often provide specific instructions based on the scale's heat resistance capabilities.
| 1000℃ | 1200℃ | 1400℃ | 1600℃ |
|---|---|---|---|
| 1.6m | 1.8m | 2m | 2.2m |
