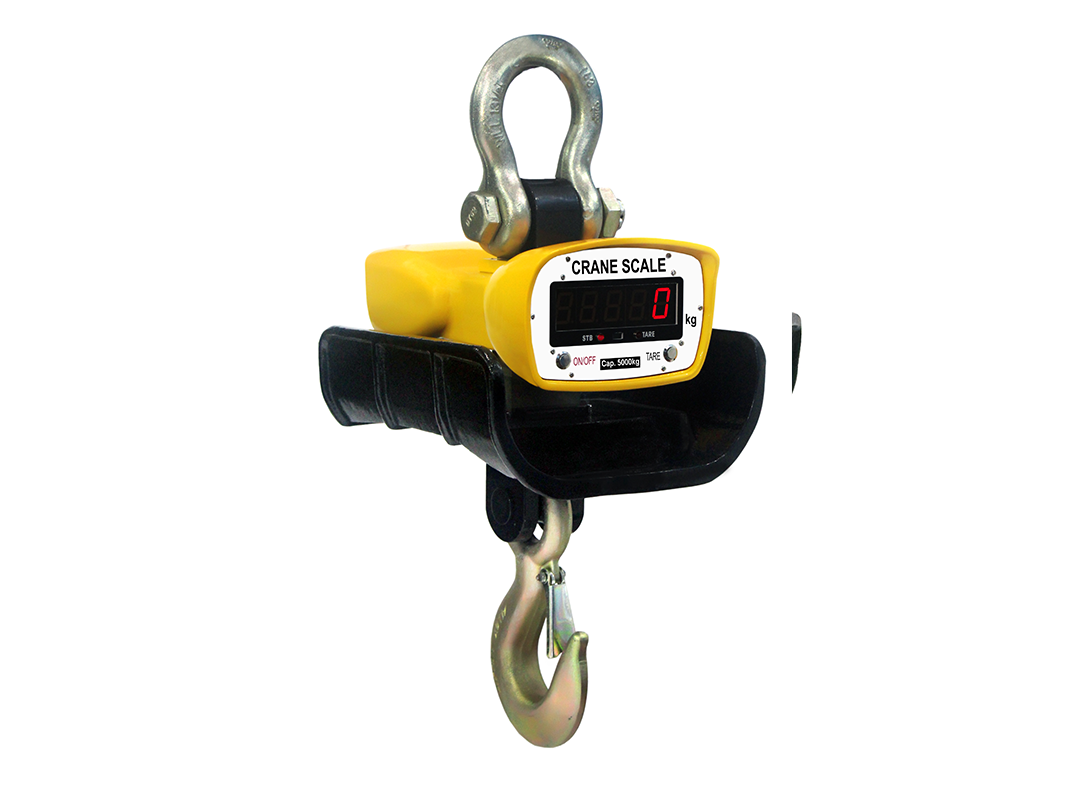

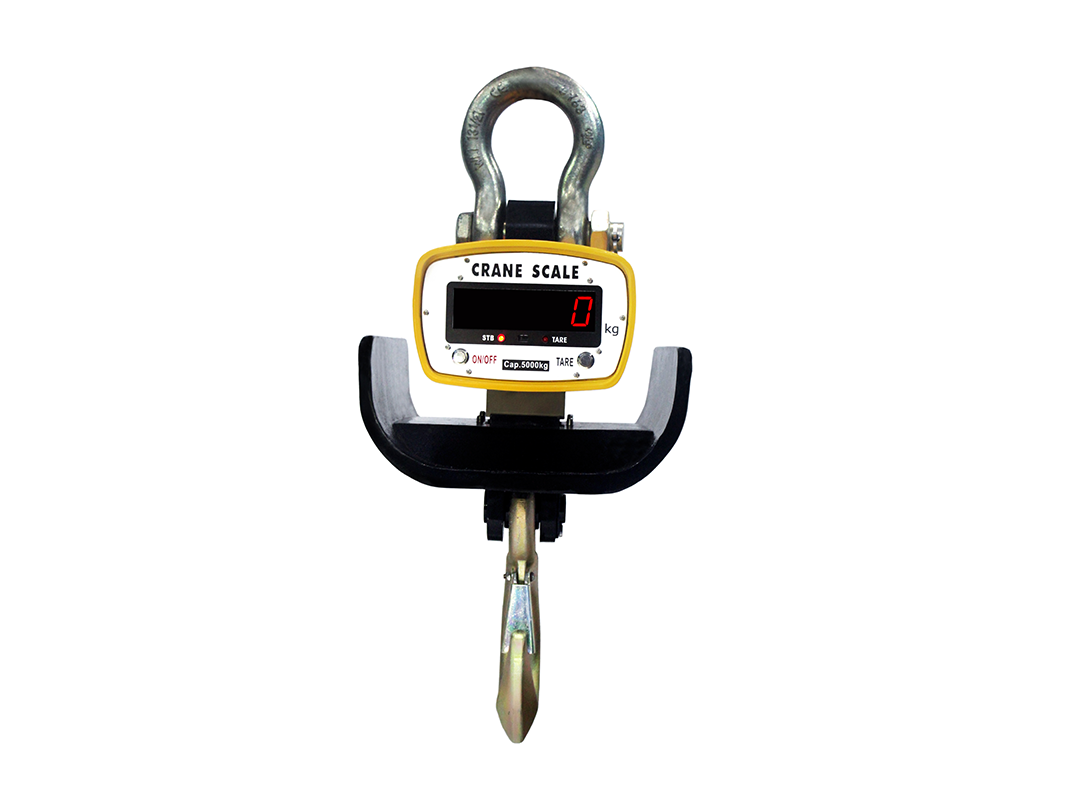

Heat Proof Crane Scale

Our Heat Proof Crane Scale is specially engineered for accurate and reliable weighing in extreme high-temperature environments. Designed for demanding industries such as foundries, metal casting units, and steel plants, this high temperature crane scale performs efficiently even in conditions where temperatures can reach up to 1600°C.
Built for heavy-duty operations, this industrial crane scale features advanced heat insulation and reflective shielding that protect internal components from radiant and conductive heat. Its rugged construction ensures long service life, making it an ideal heavy duty crane scale for continuous operation in harsh industrial settings.
With user-friendly functions, clear long-distance LED visibility, and high safety standards, this foundry crane scale delivers stable performance, operator safety, and dependable results for lifting and weighing hot materials.

Model No.	:	STIPL-HS
Part Code	:	CST
Price	:	74750.00

Catalogue

Rugged die-cast aluminium housing for long-lasting industrial use
Multi-layer heat-resistant insulation system for protection against extreme temperatures
Reflective thermal shielding to reduce radiant heat impact on internal components
High-strength load-bearing structure designed for heavy industrial lifting
Sealed internal construction to protect electronics from dust, fumes, and harsh environments
Optimized internal layout to maintain stability and performance under heat stress

Accuracy Standard: Complies with OIML Class III
Display: 30 mm (1.2″) bright 5-digit LED display
Filtering: Selectable Low / Medium / High filtering modes
Weighing Units: Kilograms (kg) and Pounds (lb) selectable
Resolution: 2000 to 3000 divisions standard (up to 15,000 optional)
Zero Range: 4% of Full Scale (F.S.)
Tare Range: 100% of Full Scale (F.S.)
Overload Indication: 100% F.S. + 9e
Maximum Safety Load: 125% of Full Scale (F.S.)
Ultimate Load: 700% of Full Scale (F.S.)
Operating Humidity: ≤ 85% RH at 20°C
Remote Control Distance: Up to 15 meters
Gravity Acceleration: Adjustable (default value: 9.793 m/s²)
Remote powered by AAA batteries (1.5V × 2)
Stable Time: Stable reading within ≤10 seconds

Battery operated for portable use
Fully sealed lead-acid battery: 6V / 7Ah
Battery Backup ≥ 50 hours continuous operation
Low battery indication provided
Automatic power-off function for energy saving
Adapter: DC 9V / 1000mA

580 Wireless Display with Printer – Up to 100-meter wireless range
180 Wireless LCD Display – Clear visibility up to 100-meter range
380 Wireless Display – Reliable wireless operation up to 100 meters
3″ Extra Red LED Display – Enhanced long-distance readability
5″ Extra Red LED Display – Enhanced long-distance readability

The minimum distance between a heat-proof crane scale and a high-temperature source can vary based on the specific design and heat resistance ratings of the crane scale. Generally, here are some guidelines:

1000℃	1200℃	1400℃	1600℃
1.6 Meters	1.8 Meters	2 Meters	2.2 Meters

Manufacturer Specifications: Always refer to the manufacturer's guidelines for recommended distances. They often provide specific instructions based on the scale's heat resistance capabilities.

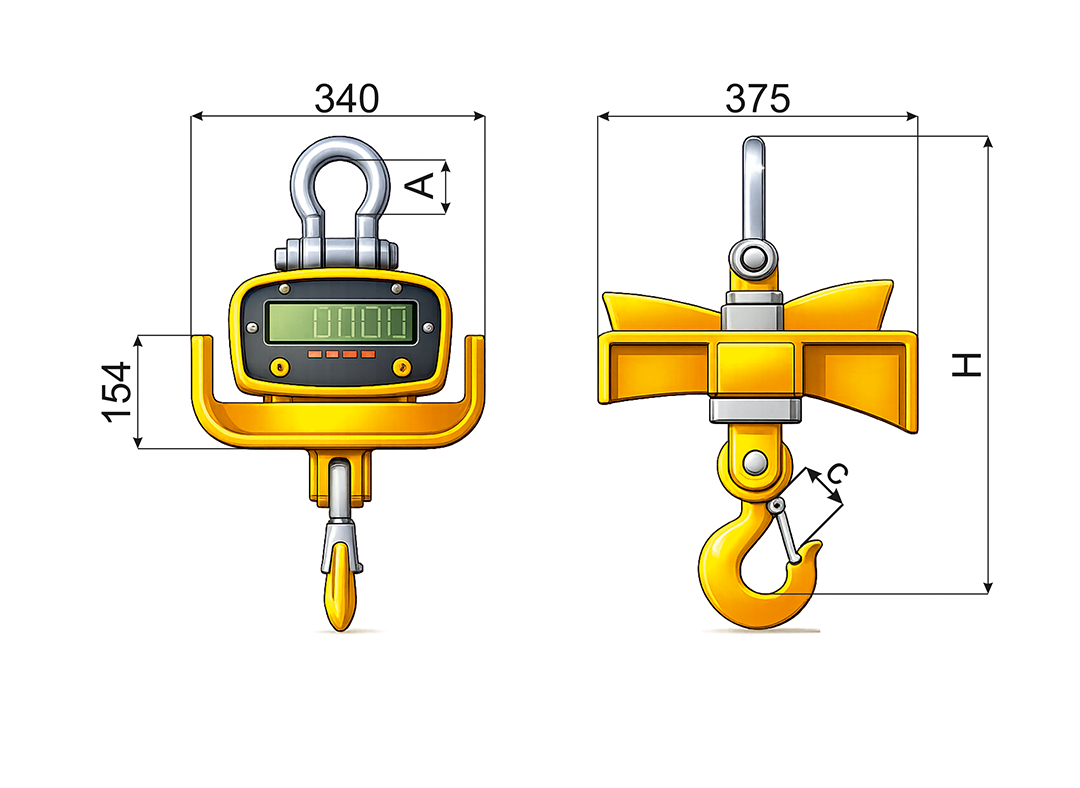

Model	Part Code	Cap.(kg)	Division	A(mm)	C(mm)	H(mm)	N.W(kg)	G.W. (kg)
STIPL-HS	CST01	1000kg	0.5kg	100	40	600	24	27
STIPL-HS	CST03	3000kg	1kg	130	45	720	33	36
STIPL-HS	CST04	5000kg	2kg	145	60	850	50	55
STIPL-CS	CST05	10000kg	5kg	170	85	900	75	78
STIPL-CS	CST02	15000kg	5kg	190	85	920	80	86
STIPL-CS	CST06	20000kg	5kg	190	85	920	80	86

Steel & Foundry Industries
Hot Rolling Mills
Furnace & Heat Treatment Plants
Casting & Smelting Units
Metal Processing Industries
High Temperature Industrial Areas
Power Plants & Thermal Units
Refractory & Alloy Manufacturing Units
Packaging & Printing Industries
Metal & Wire Industries
