Digital Heavy-Duty Platform Counting Scale

Samurai STIPL-PC Floor Weighing & Counting Scale

The Samurai STIPL-PC Floor Weighing & Counting Scale is a high-performance industrial counting scale designed for accurate weighing and fast piece counting of bulk materials. Equipped with a numeric keypad for unit weight and sample entry, this floor counting scale ensures quick setup and reliable operation in demanding industrial environments.

Model	:	STIPL-PC
Approx. Price	:	46863.00
Code	:	FCS

Catalogue

Heavy-duty adjustable levelling feet ensure stable installation and accurate weighing on uneven floors

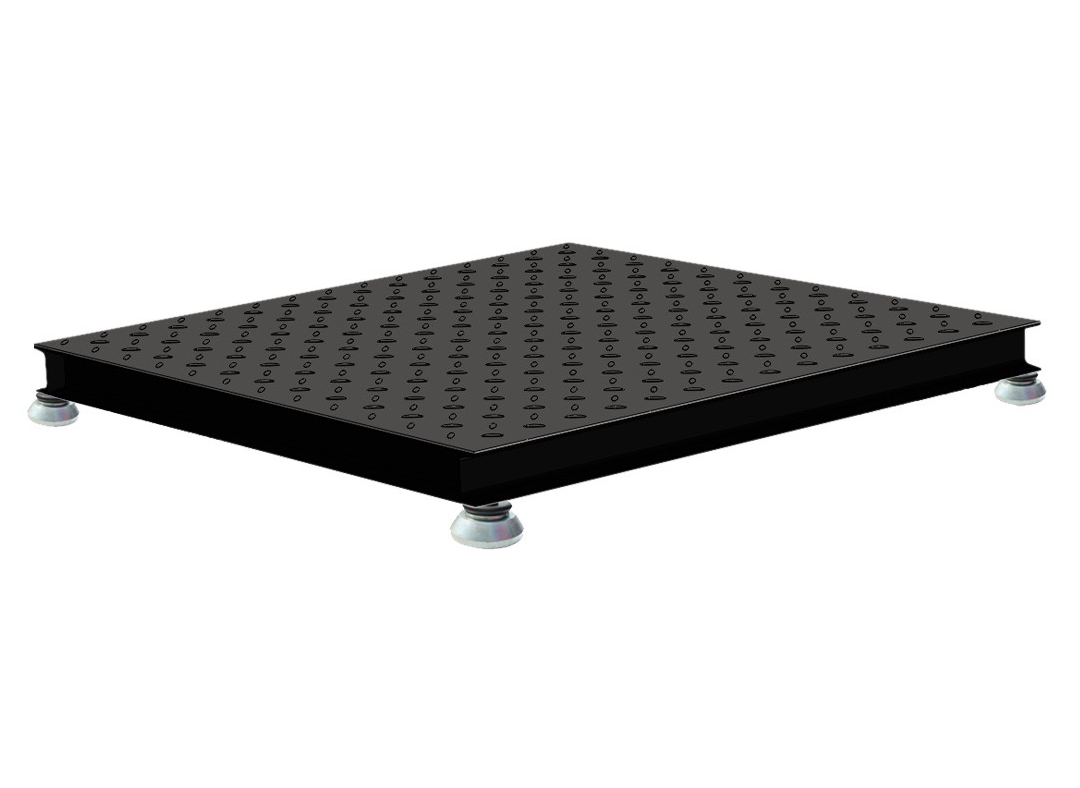

Chequered plate platform surface provides enhanced grip and prevents material slippage
Rugged industrial-grade construction designed for continuous and demanding operations

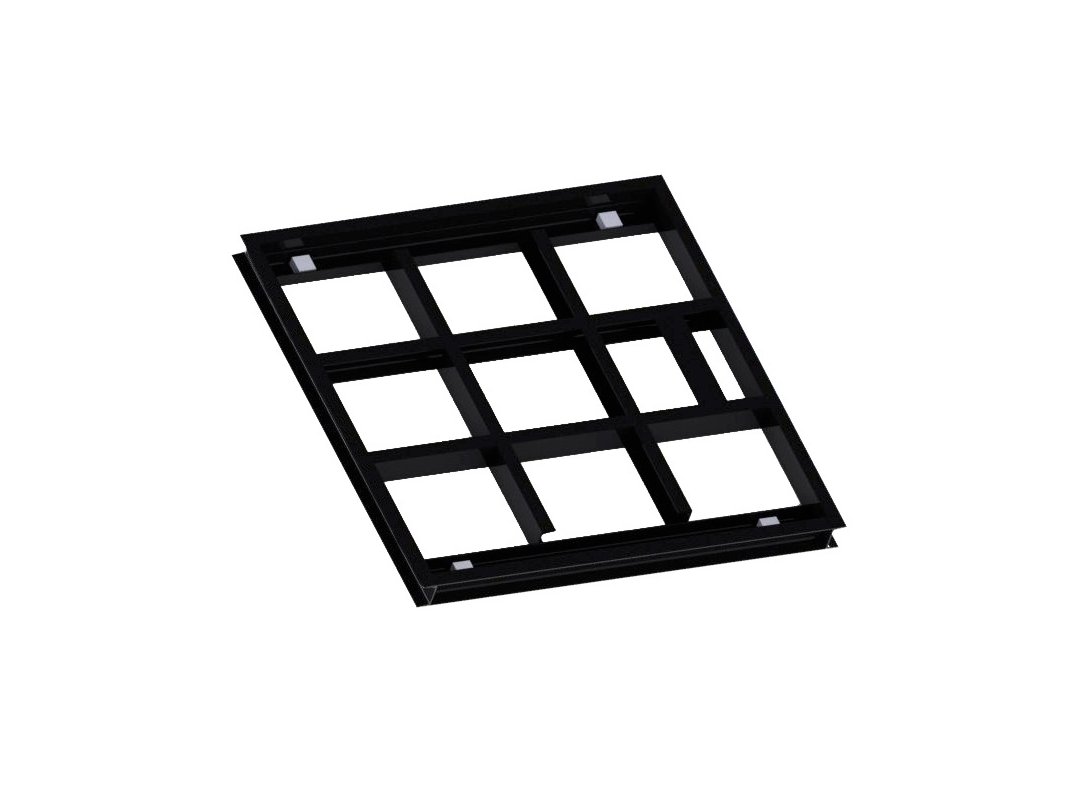

Heavy-duty mild steel channel platform structure for superior strength and long-term durability
Built-in overload protection safeguards internal components from excessive load damage
Supports single-ended shear beam load cells in a four-load cell configuration for precise and reliable weighing
Integrated junction box enables accurate signal balancing and connection of all four load cells

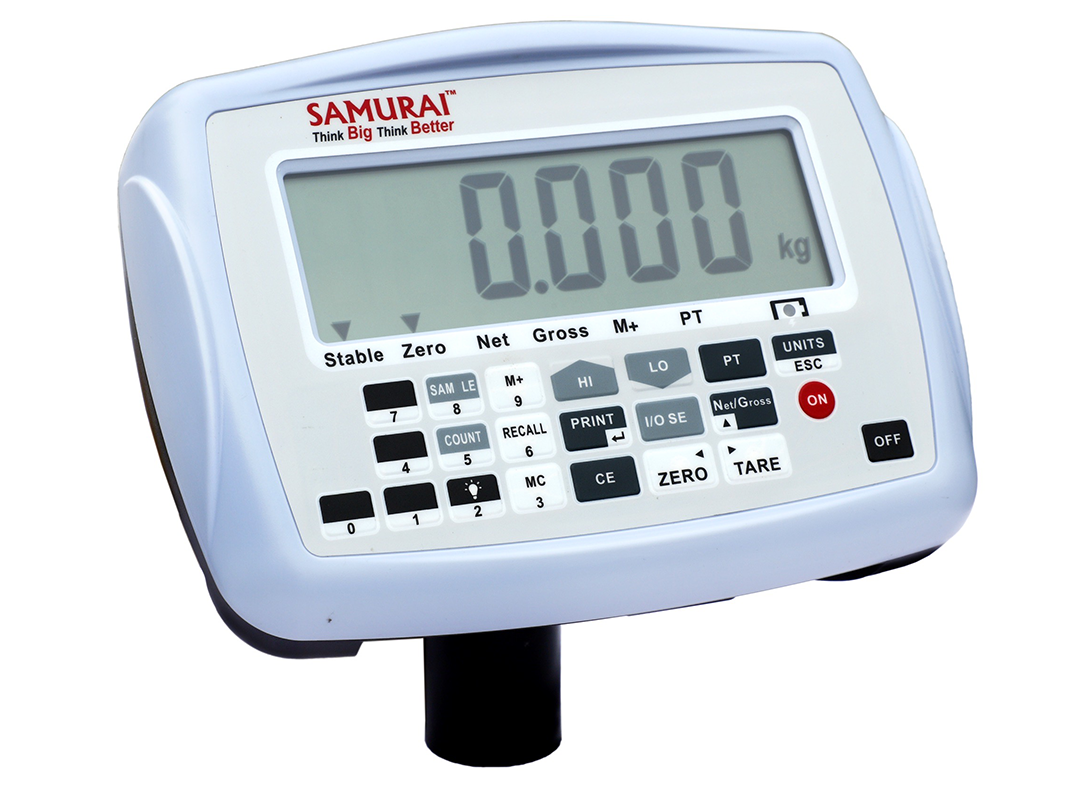

Three independent LCD displays for Weight, Piece Weight and Total Count
Bright 18 mm LCD display with LED backlight
Colour-coded keys facilitate quick recognition of frequently used buttons
Dedicated keys for Count Alarm, Units, Sample, Count, MR, MC, CE
9 × One-touch Piece Weight Memory keys (Total 18 Piece Weight Memory)
Full Tare and Accumulation Memory functions
Digital filtering to minimise vibration effects
Programmable capacity and division
External calibration for verification and adjustment
Zero-tracking feature ensures zero display
Display Resolution: 1 :30,000
Internal counting resolution 1 : 600,000
Parts counting with selectable sample sizes
Rugged ABS enclosure for display unit, suitable for industrial environments
Memory accumulation of results
Auto power-off to save energy
Display Size 240x105x180mm

Rechargeable battery for operation almost anywhere
Battery 6V / 4Ah– up to 80 hours continuous use
Low Battery Indicator and Charging Status Indicator
Power Supply : Input: AC 100V – 240V, Output: 12V / 1A
Operating Environment : –10°C to 40°C (14°F to 104°F)

RS-232 Communication Interface
Three-Colour Tower Lamp (Red / Yellow / Green)
Check Counting Function

Capacity (kg.)	Accuracy (g)	Platform Size (mm)	Frame	Platter
500	100g	1000 × 1000mm	Mild Steel	MS Chequered
1000 / 2000 / 3000 / 5000kg	100 / 200 / 500g	1000×1000 / 1200×1200 / 1500×1500mm	Mild Steel	MS Chequered

Manufacturing Industry
Automobile & Auto Parts Industry
Warehouse & Logistics
Plastic & Rubber Industry
Electrical & Electronics Industry
Metal & Engineering Industry
