Hanging Scale-Standard

Hanging Scale-Standard

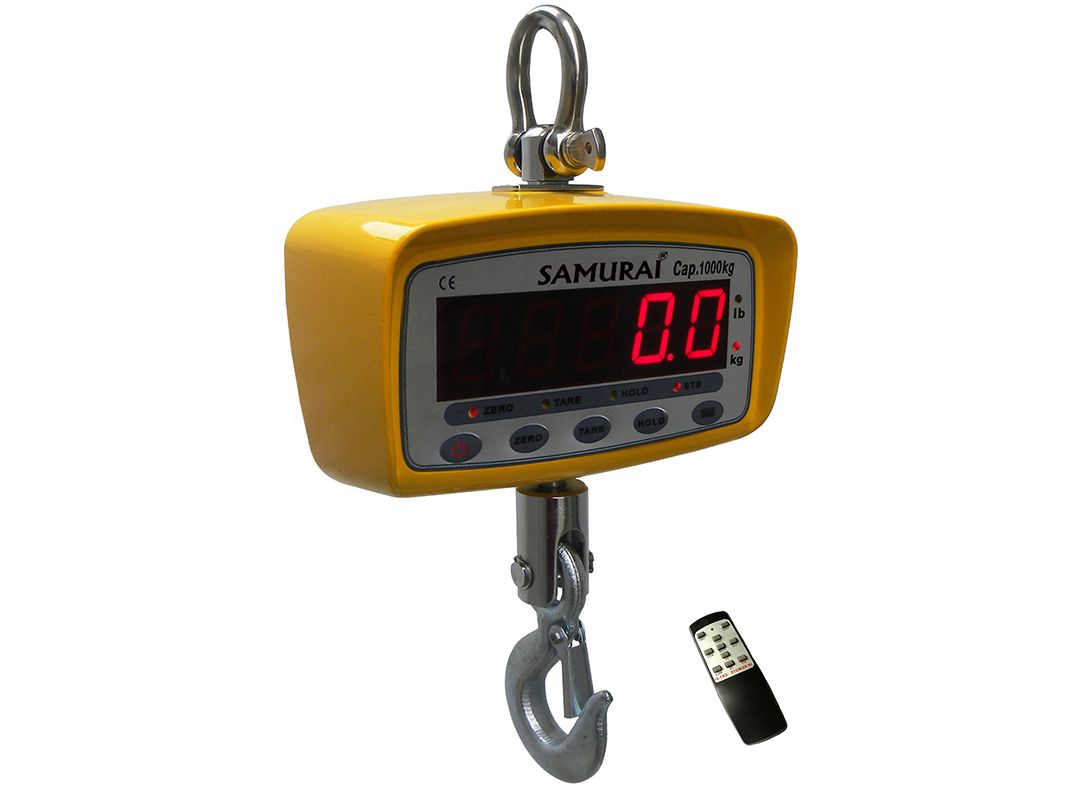

The Samurai digital hanging crane scale is specially engineered for heavy-duty industrial weighing applications. Designed with a strong focus on safety, durability, and long-term performance, this Samurai hanging scale provides stable and reliable weight readings in demanding environments. Featuring a large LED display, multi-function weighing operations, and remote-control calibration, this Samurai crane hanging scale is ideal for factories, warehouses, construction sites, logistics hubs, and material-handling operations.

Model No. : STIPL-HS
Part Code : HSHH
Basic Price : 18975.00
  • 360° safe rotating hook for convenient operation
  • Die-casting aluminium housing for maximum protection
  • Large red 5-digit LED display with 30 mm digit height
  • Industrial-grade internal components for long service life
  • Remote controller support for easy operation and calibration
  • Complies with OIML Class III accuracy standard
  • 30 mm (1.2”) 5-digit LED display for clear long-distance visibility
  • Zero range up to 4% of Full Scale (F.S.)
  • Tare range up to 100% of Full Scale (F.S.)
  • Fast stable weighing time ≤ 10 seconds
  • Overload indication at 100% F.S. + 9e for user safety
  • Maximum safety load: 125% of Full Scale (F.S.)
  • Ultimate load capacity up to 400% of Full Scale (F.S.)
  • Suitable for heavy-duty hanging and crane weighing applications
  • Designed for safe, reliable, and consistent industrial performance
  • Battery Backup: Up to 50 hours on full charge
  • Battery of Remote Controller: AAA size battery, 1.5V × 2
  • Battery Type: 6V / 5Ah fully sealed Lead-Acid rechargeable battery
  • Adapter: DC 9V / 1000 mA
  • Average Current Consumption: Approx. DC 100 mA (±10%)
  • Low Battery Warning: Display digits start flashing when battery needs recharging
  • Auto Power-Off Protection: Scale switches off automatically after 1–2 hours if battery is not recharged
  • Charging Method:
  • Switch off the crane scale before charging
  • Use the supplied adapter
  • Charging indicator turns orange during charging
  • Indicator turns green when charging is complete
  • Charging Time: Minimum 8 hours recommended
  • Charging Safety: Built-in charging protection prevents battery damage even during extended charging

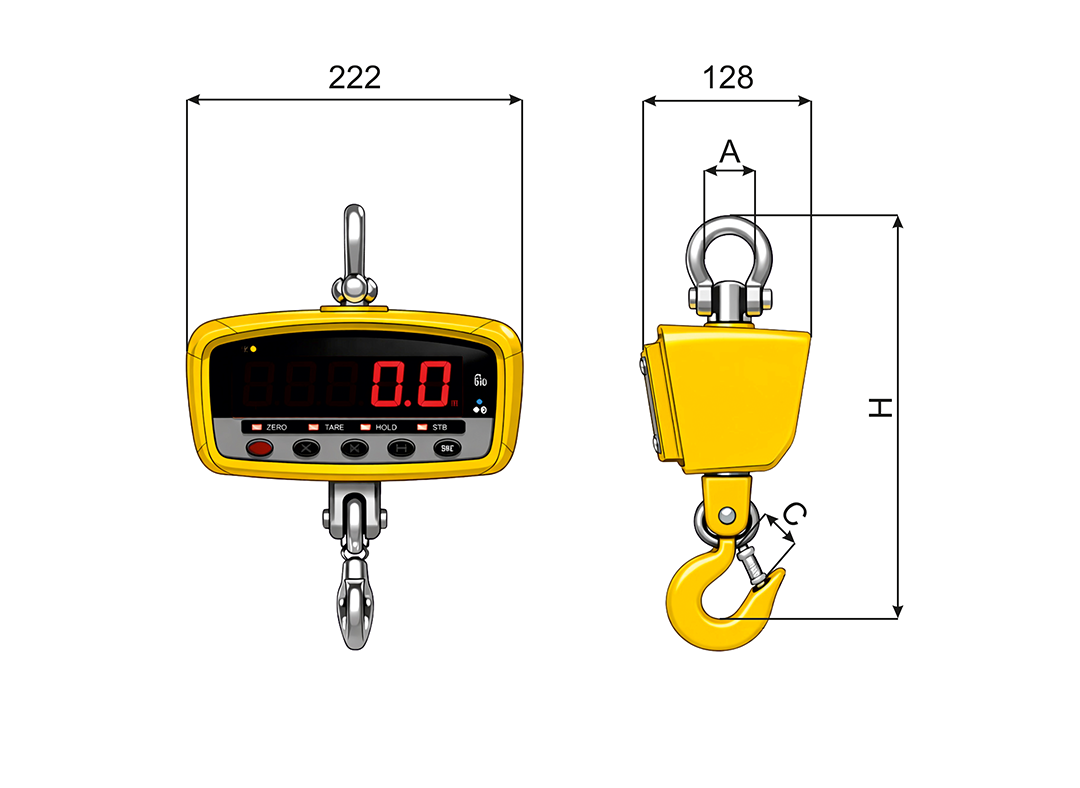

Model Part Code Capacity Accuracy A C H Net Weight Gross Weight
STIP-HS HSHH1 500kg 200g 42mm 27mm 390mm 4.5kg 5.5kg
STIP-HS CSS01 1000kg 500g 42mm 27mm 390mm 4.5kg 5.5kg
  • Battery Type: 6V / 5Ah fully sealed Lead-Acid rechargeable battery
  • Adapter: DC 9V / 1000 mA
  • Average Current Consumption: Approx. DC 100 mA (±10%)
  • Low Battery Warning: Display digits start flashing when battery needs recharging
  • Auto Power-Off Protection: Scale switches off automatically after 1–2 hours if battery is not recharged
  • Charging Method:
  • Switch off the crane scale before charging
  • Use the supplied adapter
  • Charging indicator turns orange during charging
  • Indicator turns green when charging is complete
  • Charging Time: Minimum 8 hours recommended
  • Charging Safety: Built-in charging protection prevents battery damage even during extended charging
